Angular & Web Components


Angular is a TypeScript-based open-source web application framework led by the Angular Team at Google and by a community of individuals and corporations. It is commonly used in large web applications. This page will show you how to use Smart Web Components with Angular.



Overview


We will walk you through the steps to add Smart Web Components to an existing Angular project, and configure some of the features. Smart web Components contains 40+ Web Components with Material Design. Some of the web components are: Grid, Chart, Gannt Chart, Docking Layout. For the purposes of the demo, we will use the Grid web component. We will show you some of the data grid capabilities (properties, data source). In addition, we will customize the Grid appearance with custom Column Templates.



Table of Contents

Add "smart-grid" to Your Angular Project

The Angular step we need to take to make Angular play well with Web Components is to add the CUSTOM_ELEMENTS_SCHEMA to our app module and import the smart-grid
import { NgModule, CUSTOM_ELEMENTS_SCHEMA } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { FormsModule } from '@angular/forms';

import { AppComponent } from './app.component';
import {smartGrid} from '@smarthtmlelements/smart-elements/source/modules/smart.grid.js';

@NgModule({
    declarations: [AppComponent],
    imports: [BrowserModule, FormsModule],
    schemas: [CUSTOM_ELEMENTS_SCHEMA],
    providers: [],
    bootstrap: [AppComponent]
})

export class AppModule { }

We can now use the smart-grid with Angular. Data binding and event handlers will just work right out of the box.
Here’s how we would use our Smart.Grid element as part of a simple Angular app. First, our component template:

app.component.html

 <smart-grid [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>

We have bound the "columns" and "dataSource" properties of the smart-grid to values in our Angular component.

app.component.ts

import { Component, ViewChild, AfterViewInit, ViewEncapsulation } from '@angular/core';
import {smartGrid, smartDataAdapter} from '@smarthtmlelements/smart-elements/source/modules/smart.grid.js';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['app.component.css'],
    encapsulation: ViewEncapsulation.None
})

export class AppComponent implements AfterViewInit {
	dataSource: any = new smartDataAdapter(
		{
			dataSource: [{ "id": 0, "firstName": "Beate", "lastName": "Wilson", "productName": "Caramel Latte", "price": 3.8, "quantity": 6, "total": 22.799999999999997 }, { "id": 1, "firstName": "Ian", "lastName": "Nodier", "productName": "Caramel Latte", "price": 3.8, "quantity": 8, "total": 30.4 }, { "id": 2, "firstName": "Petra", "lastName": "Vileid", "productName": "Green Tea", "price": 1.5, "quantity": 2, "total": 3 }, { "id": 3, "firstName": "Mayumi", "lastName": "Ohno", "productName": "Caramel Latte", "price": 3.8, "quantity": 2, "total": 7.6 }, { "id": 4, "firstName": "Mayumi", "lastName": "Saylor", "productName": "Espresso con Panna", "price": 3.25, "quantity": 4, "total": 13 }, { "id": 5, "firstName": "Regina", "lastName": "Fuller", "productName": "Caffe Americano", "price": 2.5, "quantity": 4, "total": 10 }, { "id": 6, "firstName": "Regina", "lastName": "Burke", "productName": "Caramel Latte", "price": 3.8, "quantity": 8, "total": 30.4 }, { "id": 7, "firstName": "Andrew", "lastName": "Petersen", "productName": "Caffe Americano", "price": 2.5, "quantity": 6, "total": 15 }, { "id": 8, "firstName": "Martin", "lastName": "Ohno", "productName": "Espresso con Panna", "price": 3.25, "quantity": 3, "total": 9.75 }, { "id": 9, "firstName": "Beate", "lastName": "Devling", "productName": "Green Tea", "price": 1.5, "quantity": 9, "total": 13.5 }, { "id": 10, "firstName": "Sven", "lastName": "Devling", "productName": "Espresso Truffle", "price": 1.75, "quantity": 6, "total": 10.5 }, { "id": 11, "firstName": "Petra", "lastName": "Burke", "productName": "Peppermint Mocha Twist", "price": 4, "quantity": 11, "total": 44 }],
			dataFields:
				[
					'id: number',
					'firstName: string',
					'lastName: string',
					'productName: string',
					'quantity: number',
					'price: number',
					'total: number'
				]
		})


	columns: any = [
		{
			label: 'First Name', dataField: 'firstName', columnGroup: 'name'
		},
		{ label: 'Last Name', dataField: 'lastName', columnGroup: 'name' },
		{ label: 'Product', dataField: 'productName', columnGroup: 'order' },
		{ label: 'Quantity', dataField: 'quantity', columnGroup: 'order' },
		{
			label: 'Unit Price', dataField: 'price', cellsFormat: 'c2', columnGroup: 'order', formatFunction(settings) {
				const rowId = settings.row;
				const columnDataField = settings.column;
				const template = settings.template;

				if (settings.value >= 4) {
					settings.cell.background = '#00A45A';
					settings.cell.color = '#fff';
				}
				else if (settings.value < 2) {
					settings.cell.background = '#DF3800';
					settings.cell.color = '#fff';
				}
				else {
					settings.cell.background = '#FFFDE1';
					settings.cell.color = '#333';
				}

				settings.value = '$' + new Number(settings.value).toFixed(2);
			}
		},
		{
			label: 'Total', dataField: 'total', cellsFormat: 'c2', columnGroup: 'order', formatFunction(settings) {
				const rowId = settings.row;
				const columnDataField = settings.column;
				const template = settings.template;

				if (settings.value >= 20) {
					settings.cell.background = '#00A45A';
					settings.cell.color = '#fff';
				}
				else if (settings.value <= 5) {
					settings.cell.background = '#DF3800';
					settings.cell.color = '#fff';
				}
				else {
					settings.cell.background = '#FFFDE1';
					settings.cell.color = '#333';
				}

				settings.value = '$' + new Number(settings.value).toFixed(2);
			}
		}
	]

    ngOnInit(): void {

    }
    ngAfterViewInit(): void {
    }
}

angular.json

The below code is the angular.json file, where we updated the "styles" by adding the CSS file for the Smart Web Components.
{
  "$schema": "./node_modules/@angular/cli/lib/config/schema.json",
  "version": 1,
  "newProjectRoot": "projects",
  "projects": {
    "bargauge": {
      "projectType": "application",
      "root": "",
      "architect": {
        "build": {
          "builder": "@angular-devkit/build-angular:browser",
          "options": {
            "outputPath": "dist/grid/overview/",
            "index": "",
            "main": "src/grid/overview//main.ts",
            "polyfills": "polyfills.ts",
            "tsConfig": "tsconfig.app.json",
			"styles": [
				"node_modules/@smarthtmlelements/smart-elements/source/styles/smart.default.css"
			],
			"es5BrowserSupport": false
          },
          "configurations": {
            "production": {
              "optimization": true,
              "sourceMap": false,
              "extractCss": true,
              "namedChunks": false,
              "aot": true,
              "extractLicenses": false,
              "vendorChunk": false,
              "buildOptimizer": true
            }
          }
        }
      }
    }
  }
}

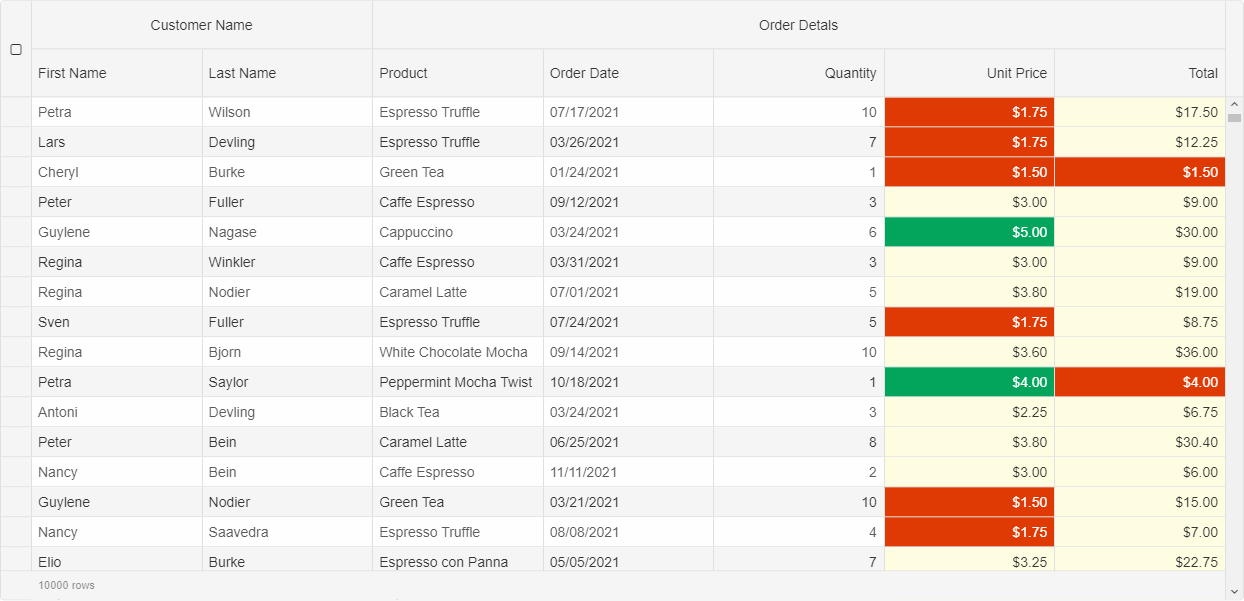

Result:

Angular Grid Web Component

Add Sorting and Filtering


Sorting and Filtering are essential features in each web application with Grids. To enable the sorting and filtering in our grid, we need to define two objects - sorting and filtering and set the "enabled" boolean property to true. We add the below code to app.component.ts

	sorting: any = {
		enabled: true;
	}

	filtering: any = {
		enabled: true;
	}

and in app.component.html

 <smart-grid [sorting]="sorting" [filtering]="filtering" [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>


Online Examples: Grid Sorting and Grid Filtering

Enable Selection


The Grid supports selection by cell, row and with checkboxes. We can also choose from selection with single and double-click, selection by one or multiple rows or cells. In the code below, we will enable the Row selection. We add the below code to app.component.ts

	selection: any = {
		enabled: true;
	}

and in app.component.html

 <smart-grid [selection]="selection" [sorting]="sorting" [filtering]="filtering" [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>


Online Selection Example: Grid Selection.


Add Grouping(Professional)


Grouping is a professional feature and requires a license. The comparison table with features and components included in the Community and Professional versions is here. Similar to Sorting and Filtering, Grouping is enabled by setting the "enabled" property to true

We add the below code to app.component.ts

	grouping: any = {
		enabled: true;
	}

and in app.component.html

 <smart-grid [grouping]="grouping" [selection]="selection" [sorting]="sorting" [filtering]="filtering" [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>

Angular Grid Web Component Grouping

Online Grouping Example: Grid Grouping.



Enable Editing


smart-grid supports editing by cell, editing by row(Professional) and editing with dialog or command column(Professional). In this case, we will use the cell editing. You can enable the editing functionality by setting the "enabled" boolean property to true.

app.component.ts

import { Component, ViewChild, AfterViewInit, ViewEncapsulation } from '@angular/core';
import {smartGrid, smartDataAdapter} from '@smarthtmlelements/smart-elements/source/modules/smart.grid.js';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['app.component.css'],
    encapsulation: ViewEncapsulation.None
})

export class AppComponent implements AfterViewInit {
	editing: any = {
		enabled: true
	}

	dataSource: any = new smartDataAdapter(
		{
			dataSource: [{ "id": 0, "firstName": "Beate", "lastName": "Wilson", "productName": "Caramel Latte", "price": 3.8, "quantity": 6, "total": 22.799999999999997 }, { "id": 1, "firstName": "Ian", "lastName": "Nodier", "productName": "Caramel Latte", "price": 3.8, "quantity": 8, "total": 30.4 }, { "id": 2, "firstName": "Petra", "lastName": "Vileid", "productName": "Green Tea", "price": 1.5, "quantity": 2, "total": 3 }, { "id": 3, "firstName": "Mayumi", "lastName": "Ohno", "productName": "Caramel Latte", "price": 3.8, "quantity": 2, "total": 7.6 }, { "id": 4, "firstName": "Mayumi", "lastName": "Saylor", "productName": "Espresso con Panna", "price": 3.25, "quantity": 4, "total": 13 }, { "id": 5, "firstName": "Regina", "lastName": "Fuller", "productName": "Caffe Americano", "price": 2.5, "quantity": 4, "total": 10 }, { "id": 6, "firstName": "Regina", "lastName": "Burke", "productName": "Caramel Latte", "price": 3.8, "quantity": 8, "total": 30.4 }, { "id": 7, "firstName": "Andrew", "lastName": "Petersen", "productName": "Caffe Americano", "price": 2.5, "quantity": 6, "total": 15 }, { "id": 8, "firstName": "Martin", "lastName": "Ohno", "productName": "Espresso con Panna", "price": 3.25, "quantity": 3, "total": 9.75 }, { "id": 9, "firstName": "Beate", "lastName": "Devling", "productName": "Green Tea", "price": 1.5, "quantity": 9, "total": 13.5 }, { "id": 10, "firstName": "Sven", "lastName": "Devling", "productName": "Espresso Truffle", "price": 1.75, "quantity": 6, "total": 10.5 }, { "id": 11, "firstName": "Petra", "lastName": "Burke", "productName": "Peppermint Mocha Twist", "price": 4, "quantity": 11, "total": 44 }],
			dataFields:
				[
					'id: number',
					'firstName: string',
					'lastName: string',
					'productName: string',
					'quantity: number',
					'price: number',
					'total: number'
				]
		})


	columns: any = [
		{
			label: 'First Name', dataField: 'firstName', columnGroup: 'name'
		},
		{ label: 'Last Name', dataField: 'lastName', columnGroup: 'name' },
		{ label: 'Product', dataField: 'productName', columnGroup: 'order' },
		{ label: 'Quantity', dataField: 'quantity', columnGroup: 'order' },
		{
			label: 'Unit Price', dataField: 'price', cellsFormat: 'c2'
		},
		{
			label: 'Total', dataField: 'total', cellsFormat: 'c2'
		}
	]

    ngOnInit(): void {

    }
    ngAfterViewInit(): void {
    }
}


app.component.html

 <smart-grid [editing]="editing" [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>


Enable Paging


To enable pagination, set the grid paging and pager properties. The paging.enabled turns on/off pagination, pager.visible shows/hides the top or bottom pagers. The grid's pagination feature can be used to load data on demand. It can be used with all other grid features. There are built-in options to customize the "pageSize", navigate through pages using API, customize the pager's template, configure whether top and bottom pagers are visible all the time or only the top or bottom pager is visible. It is also optional to display a "select" tag to dynamically update the page size or an "input" tag which allows you to type the page index and navigate to the page.

app.component.ts

import { Component, ViewChild, AfterViewInit, ViewEncapsulation } from '@angular/core';
import {smartGrid, smartDataAdapter} from '@smarthtmlelements/smart-elements/source/modules/smart.grid.js';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['app.component.css'],
    encapsulation: ViewEncapsulation.None
})

export class AppComponent implements AfterViewInit {
	editing: any = {
		enabled: true
	}

	paging: any = {
		enabled: true,
		pageSize: 5
	}

	pager: any = {
		visible: true
	}

	dataSource: any = new smartDataAdapter(
		{
			dataSource: [{ "id": 0, "firstName": "Beate", "lastName": "Wilson", "productName": "Caramel Latte", "price": 3.8, "quantity": 6, "total": 22.799999999999997 }, { "id": 1, "firstName": "Ian", "lastName": "Nodier", "productName": "Caramel Latte", "price": 3.8, "quantity": 8, "total": 30.4 }, { "id": 2, "firstName": "Petra", "lastName": "Vileid", "productName": "Green Tea", "price": 1.5, "quantity": 2, "total": 3 }, { "id": 3, "firstName": "Mayumi", "lastName": "Ohno", "productName": "Caramel Latte", "price": 3.8, "quantity": 2, "total": 7.6 }, { "id": 4, "firstName": "Mayumi", "lastName": "Saylor", "productName": "Espresso con Panna", "price": 3.25, "quantity": 4, "total": 13 }, { "id": 5, "firstName": "Regina", "lastName": "Fuller", "productName": "Caffe Americano", "price": 2.5, "quantity": 4, "total": 10 }, { "id": 6, "firstName": "Regina", "lastName": "Burke", "productName": "Caramel Latte", "price": 3.8, "quantity": 8, "total": 30.4 }, { "id": 7, "firstName": "Andrew", "lastName": "Petersen", "productName": "Caffe Americano", "price": 2.5, "quantity": 6, "total": 15 }, { "id": 8, "firstName": "Martin", "lastName": "Ohno", "productName": "Espresso con Panna", "price": 3.25, "quantity": 3, "total": 9.75 }, { "id": 9, "firstName": "Beate", "lastName": "Devling", "productName": "Green Tea", "price": 1.5, "quantity": 9, "total": 13.5 }, { "id": 10, "firstName": "Sven", "lastName": "Devling", "productName": "Espresso Truffle", "price": 1.75, "quantity": 6, "total": 10.5 }, { "id": 11, "firstName": "Petra", "lastName": "Burke", "productName": "Peppermint Mocha Twist", "price": 4, "quantity": 11, "total": 44 }],
			dataFields:
				[
					'id: number',
					'firstName: string',
					'lastName: string',
					'productName: string',
					'quantity: number',
					'price: number',
					'total: number'
				]
		})


	columns: any = [
		{
			label: 'First Name', dataField: 'firstName', columnGroup: 'name'
		},
		{ label: 'Last Name', dataField: 'lastName', columnGroup: 'name' },
		{ label: 'Product', dataField: 'productName', columnGroup: 'order' },
		{ label: 'Quantity', dataField: 'quantity', columnGroup: 'order' },
		{
			label: 'Unit Price', dataField: 'price', cellsFormat: 'c2'
		},
		{
			label: 'Total', dataField: 'total', cellsFormat: 'c2'
		}
	]

    ngOnInit(): void {

    }
    ngAfterViewInit(): void {
    }
}


app.component.html

 <smart-grid [paging]="paging" [pager]="pager" [editing]="editing" [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>


Set Theme


The Smart Web Components product includes 14 Material Themes - 7 Light and 7 Dark. To set a theme, just include the "smart.[theme].css" file after smart.default.css and set your component's theme attribute to the theme name.

 <smart-grid [theme]="'dark'" [grouping]="grouping" [selection]="selection" [sorting]="sorting" [filtering]="filtering" [columns]="columns" [dataSource]="dataSource" id="grid"></smart-grid>

Angular Grid Web Component Dark

If you would like to customize or build a custom theme, you can use our Online Theme Builder web application.

Native Angular Components?


Our Angular components can be downloaded from: angular.components.zip.

The list of native Angular components:
  • Smart.CheckBox
  • Smart.RadioButton
  • Smart.ProgressBar

Summary


You just learned how to setup an Angular project and add a Grid Web Component with Sorting, Filtering, Grouping and Selection. To learn more about the Grid component, visit: Grid Demos and Documentation.
