´╗┐ Barcode Overview

Getting Started with Barcode Web Component

Smart UI for Web Components is distributed as smart-webcomponents NPM package. You can also get the full download from our website with all demos from the Download page.

Setup the Barcode

Smart UI for Web Components is distributed as smart-webcomponents NPM package

  1. Download and install the package.

    npm install smart-webcomponents

  2. Once installed, import the Barcode module in your application.

    <script type="module" src="node_modules/smart-webcomponents/source/modules/smart.barcode.js"></script>

  3. Adding CSS reference

    The smart.default.css CSS file should be referenced using following code.

    <link rel="stylesheet" type="text/css" href="node_modules/smart-webcomponents/source/styles/smart.default.css" />

  4. Add the Barcode tag to your Web Page

    <smart-barcode id="barcode"></smart-barcode>

  5. Create the Barcode Component

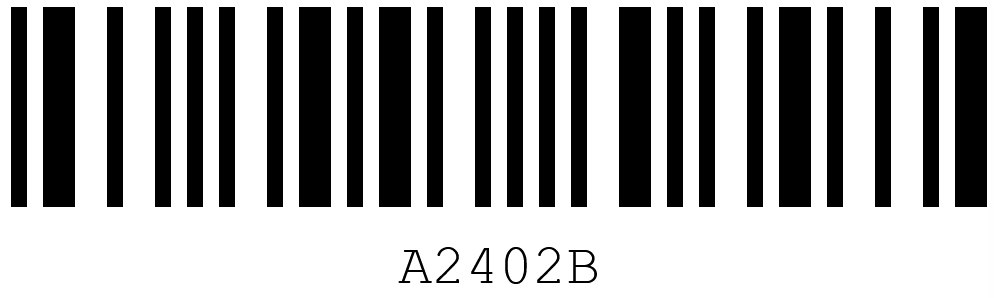

    The following code adds a simple barcode to the page.

    <!DOCTYPE html>
    <html lang="en">
    <head>
     <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
     <script type="text/javascript" src="../../source/smart.element.js"></script>
     <script type="text/javascript" src="../../source/smart.barcode.js"></script>
    </head>
    <body>
     <smart-barcode type="codabar" value="A2402B"></smart-barcode>
    </body>
    </html>

    Demo

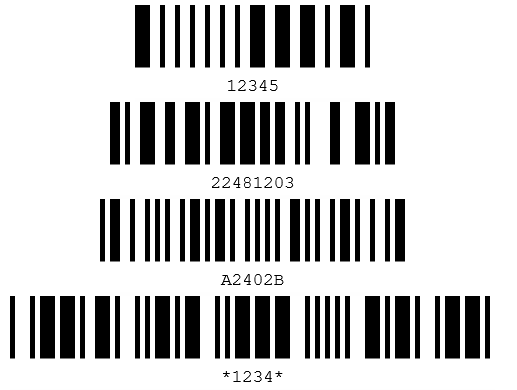

    The barcode element supports a wide range of the most common barcode types available:

    • PharmaCode
    • CodaBar
    • Code128A | Code128B | Code128C
    • MSI | MSI10 | MSI11 | MSI1010 | MSI1110
    • EAN8 | EAN13
    • Code39
    • Code93

    <!DOCTYPE html>
        <html lang="en">
        <head>
            <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
            <script type="text/javascript" src="../../source/smart.element.js"></script>
            <script type="text/javascript" src="../../source/smart.barcode.js"></script>
        </head>
        <body>
            <smart-barcodetype="pharmacode" value="12345"></smart-barcode>
            <smart-barcode type="code128c" value="22481203"></smart-barcode>
            <smart-barcode type="codabar" value="A2402B"></smart-barcode>
            <smart-barcode type="code39" value="*1234*"></smart-barcode>
            <smart-barcode type="code128a" value="EXAMPLE"></smart-barcode>
        </body>
        </html>

    Demo

    Appearance

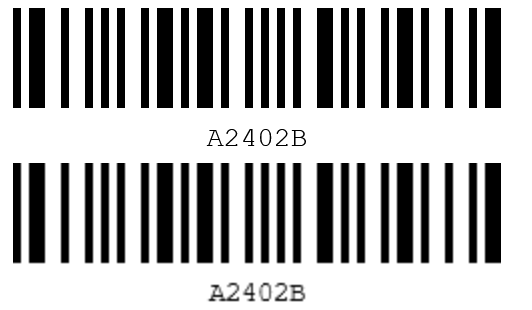

    The rendering mode is set using the renderAs property - svg(default) and canvas are supported.
    The recommended rendering mode is svg as the image quality remains the same as the barcode is zoomed in.

    <!DOCTYPE html>
        <html lang="en">
        <head>
            <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
            <script type="text/javascript" src="../../source/smart.element.js"></script>
            <script type="text/javascript" src="../../source/smart.barcode.js"></script>
        </head>
        <body>
            <smart-barcode render-as="svg" type="codabar" value="A2402B"></smart-barcode>
            <smart-barcode render-as="canvas" type="codabar" value="A2402B"></smart-barcode>
        </body>
        </html>

    Demo

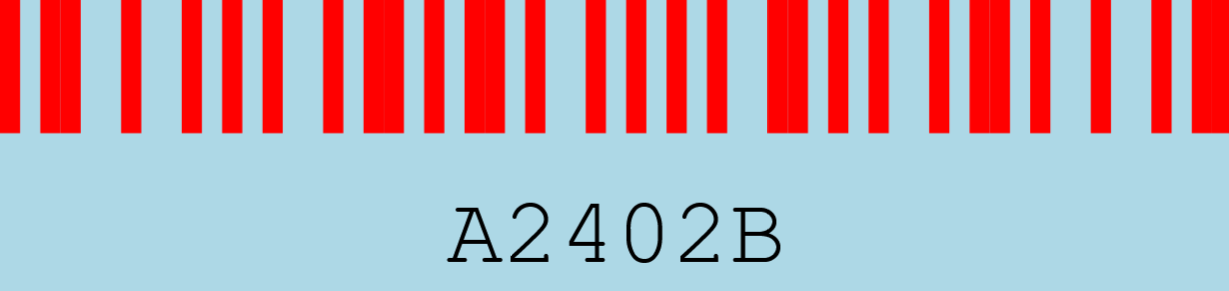

    The barcode's color, background color and bar dimensions can be customized by their respective properties:

    <smart-barcode value="A2402B" line-color="red" line-width="3" line-height="20" background-color="lightblue"></smart-barcode>

    Demo

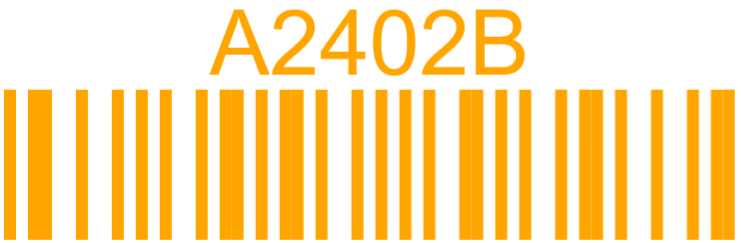

    The label of the barcode can be set to visible or hidden with displayLabel. Its color, font, size, margins and position can be customized by their respective properties. When the barcode is rendered as svg, the label can also be customized with CSS.

    <smart-barcode value="A2402B" ></smart-barcode>

    Behavior

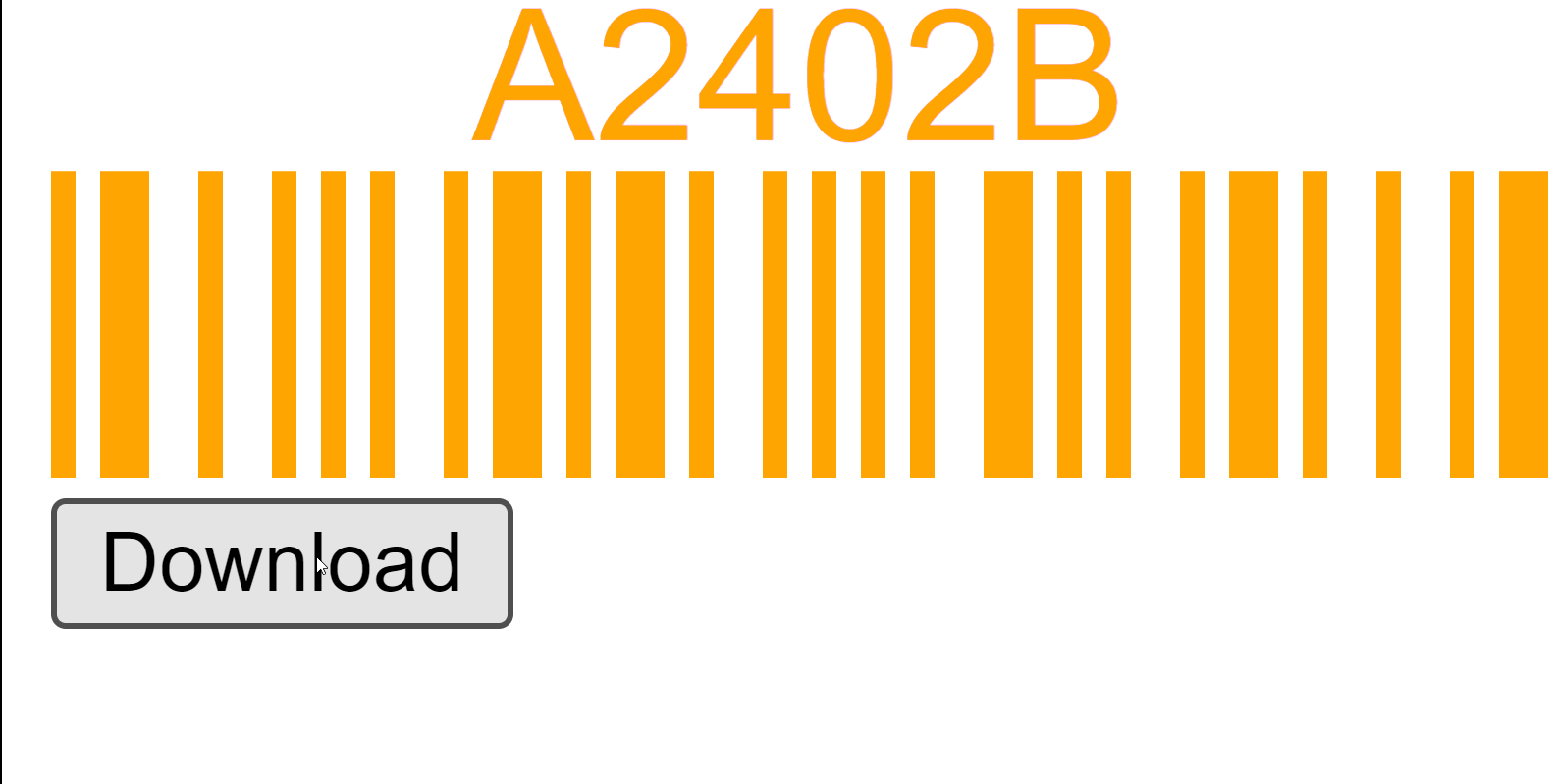

    Every valid barcode can be exported to a downloadable file. The export method supports the following formats:

    • svg
    • png
    • jpg
    <script>
        function exportBarcode(){
            let barcode1 = document.getElementById('export-barcode');
            barcode1.export('png', 'my-barcode');
        }
    </script>
    <smart-barcode id="export-barcode" value="A2402B" label-position="top" label-font-size="30" label-color="orange" label-font="arial" line-color="orange"></smart-barcode>
    <button onclick="exportBarcode()">Download</button>

    Demo

    Smart.BarCode contains a built-in validator, which depends on the barcode type.
    In the case of a invalid value, the isValid method will return false and the invalid event will be triggered.

    The invalid event.detail contains multiple values that can indicate the validity of the barcode:

    • invalidCharacters - An array indicating the invalid characters.
    • patternValidity - A boolean indicating the validity of the barcode pattern.
    • lengthValidity - A boolean indicating the validity of the barcode length.

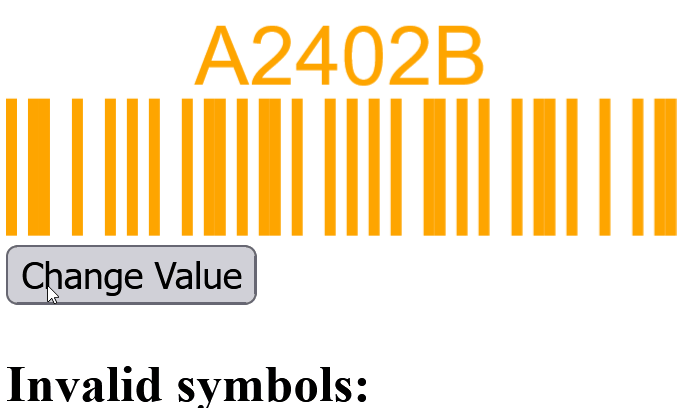

    The demo below will output the illegal charcters of the barcode:

    <!DOCTYPE html>
    <html lang="en">
    <head>
     <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
     <script type="text/javascript" src="../../source/smart.element.js"></script>
     <script type="text/javascript" src="../../source/smart.barcode.js"></script>
     <script>
     window.onload = function(){
        var barcode2 = document.getElementById('invalid-barcode');
        const OnInvalid = (event) => {
                let invalidChars = event.detail.invalidCharacters;
                document.getElementById("invalid-box").textContent+= invalidChars.join(' and ')
            };

        barcode2.addEventListener("invalid", OnInvalid);
    }
     function changeValue(){
        barcode2 = document.getElementById('invalid-barcode');
        barcode2.value = "A1230B@!"
    }
     </script>
    </head>
    <body>
     <smart-barcode>Click Me</smart-barcode>
    </body>
    </html>

    Demo


  6. Open the page in your web server.

Create, Append, Remove, Get/Set Property, Invoke Method, Bind to Event


Create a new element:
	const barcode = document.createElement('smart-barcode');


Append it to the DOM:
	document.body.appendChild(barcode);


Remove it from the DOM:
	barcode.parentNode.removeChild(barcode);


Set a property:
	barcode.propertyName = propertyValue;


Get a property value:
	const propertyValue = barcode.propertyName;


Invoke a method:
	barcode.methodName(argument1, argument2);


Add Event Listener:
	const eventHandler = (event) => {
	   // your code here.
	};

	barcode.addEventListener(eventName, eventHandler);


Remove Event Listener:
	barcode.removeEventListener(eventName, eventHandler, true);


Using with Typescript

Smart Web Components package includes TypeScript definitions which enables strongly-typed access to the Smart UI Components and their configuration.

Inside the download package, the typescript directory contains .d.ts file for each web component and a smart.elements.d.ts typescript definitions file for all web components. Copy the typescript definitions file to your project and in your TypeScript file add a reference to smart.elements.d.ts

Read more about using Smart UI with Typescript.

Getting Started with Angular Barcode Component

Setup Angular Environment

Angular provides the easiest way to set angular CLI projects using Angular CLI tool.

Install the CLI application globally to your machine.

npm install -g @angular/cli

Create a new Application

ng new smart-angular-barcode

Navigate to the created project folder

cd smart-angular-barcode

Setup the Barcode

Smart UI for Angular is distributed as smart-webcomponents-angular NPM package

  1. Download and install the package.
    npm install smart-webcomponents-angular
  2. Once installed, import the BarcodeModule in your application root or feature module.

    app.module.ts

    import { NgModule } from '@angular/core';
    import { BrowserModule } from '@angular/platform-browser';

    import { BarcodeModule } from 'smart-webcomponents-angular/barcode';

    import { AppComponent } from './app.component';

    @NgModule({
        declarations: [ AppComponent ],
        imports: [ BrowserModule, BarcodeModule ],
        bootstrap: [ AppComponent ],
    	entryComponents: [ AppComponent ]
    })

    export class AppModule { }


  3. Adding CSS reference

    The following CSS file is available in ../node_modules/smart-webcomponents-angular/ package folder. This can be referenced in [src/styles.css] using following code.

    	@import 'smart-webcomponents-angular/source/styles/smart.default.css';

    Another way to achieve the same is to edit the angular.json file and in the styles add the style.

    	"styles": [
    		"node_modules/smart-webcomponents-angular/source/styles/smart.default.css"
    	]

  4. Example


    app.component.html


    <div class="container">
        <h3>The barcode element supports a wide range of the most common barcode types available</h3>
        <div class="underlined">Pharmacode:</div>
        <smart-barcode #pharmacode [type]="'pharmacode'" [value]="'1234'"></smart-barcode>
        <div class="underlined">Codabar:</div>
        <smart-barcode #codabar [type]="'codabar'" [value]="'A2402B'" ></smart-barcode>
        <div class="underlined">Code128 A | B | C:</div>
        <smart-barcode #code128c [type]="'code128c'" [value]="'22481203'"></smart-barcode>
        <smart-barcode #code128a [type]="'code128a'" [value]="'EXAMPLE'"></smart-barcode>
        <smart-barcode #code128b [type]="'code128b'" [value]="'example'"></smart-barcode>
        <br/>
        <div class="underlined">MSI 10 | 11:</div>
        <smart-barcode #msi10 [type]="'msi10'" [value]="'12345'"></smart-barcode>
        <smart-barcode #msi11 [type]="'msi11'" [value]="'67890'"></smart-barcode>
        <div class="underlined">Code39:</div>
        <smart-barcode #code39 [type]="'code39'" [value]="'*1234567AB*'" [lineWidth]="2" ></smart-barcode>
    </div>


    app.component.ts


    ´╗┐import { Component, ViewChild, OnInit, AfterViewInit } from '@angular/core';
    import { BarcodeComponent } from 'smart-webcomponents-angular/barcode';


    @Component({
        selector: 'app-root',
        templateUrl: './app.component.html',
    	styleUrls: ['./app.component.css']
    })

    export class AppComponent implements AfterViewInit, OnInit {
    	@ViewChild('pharmacode', { read: BarcodeComponent, static: false }) pharmacode: BarcodeComponent;
    	@ViewChild('codabar', { read: BarcodeComponent, static: false }) codabar: BarcodeComponent;
    	@ViewChild('code128c', { read: BarcodeComponent, static: false }) code128c: BarcodeComponent;
    	@ViewChild('code128a', { read: BarcodeComponent, static: false }) code128a: BarcodeComponent;
    	@ViewChild('code128b', { read: BarcodeComponent, static: false }) code128b: BarcodeComponent;
    	@ViewChild('msi10', { read: BarcodeComponent, static: false }) msi10: BarcodeComponent;
    	@ViewChild('msi11', { read: BarcodeComponent, static: false }) msi11: BarcodeComponent;
    	@ViewChild('code39', { read: BarcodeComponent, static: false }) code39: BarcodeComponent;


    	ngOnInit(): void {
    		// onInit code.
    	}

    	ngAfterViewInit(): void {
    		// afterViewInit code.
    		this.init();
        }

    	init(): void {
    		// init code.

        // no code

    	}
    }


    app.module.ts


    import { NgModule } from '@angular/core';
    import { BrowserModule } from '@angular/platform-browser';

    import { BarcodeModule } from 'smart-webcomponents-angular/barcode';

    import { AppComponent } from './app.component';

    @NgModule({
        declarations: [ AppComponent ],
        imports: [ BrowserModule, BarcodeModule ],
        bootstrap: [ AppComponent ],
    	entryComponents: [ AppComponent ]
    })

    export class AppModule { }



Running the Angular application

After completing the steps required to render a Barcode, run the following command to display the output in your web browser

ng serve
and open localhost:4200 in your favorite web browser.

Read more about using Smart UI for Angular: https://www.htmlelements.com/docs/angular-cli/.

Getting Started with React Barcode Component

Setup React Environment

The easiest way to start with React is to use create-react-app. To scaffold your project structure, follow the installation instructions.

	npm install -g create-react-app
	create-react-app my-app
	cd my-app
	npm start


Preparation

Open src/App.js andsrc/App.css

  1. Remove everything inside the App div tag in src/App.js:
    <div className="App"> </div>
  2. Remove the logo.svg import
  3. Remove the contents of src/App.css
  4. Remove src/logo.svg

Setup the Barcode

Smart UI for React is distributed as smart-webcomponents-react NPM package

  1. Download and install the package.
    npm install smart-webcomponents-react
  2. Once installed, import the React Barcode Component and CSS files in your application and render it app.js

    import 'smart-webcomponents-react/source/styles/smart.default.css';
    import React from "react";
    import ReactDOM from "react-dom";
    import { Barcode } from 'smart-webcomponents-react/barcode';

    class App extends React.Component {

    	componentDidMount() {
    	}

    	render() {
    		return (
    			<div class="container">
    					<h3>The Barcode element supports a wide range of the most common Barcode types available</h3>
    					<div>Pharmacode:</div>
    					<Barcode id="pharma" type="pharmacode" value="1234"></Barcode>
    							<div>Codabar:</div>
    					<Barcode type="codabar" value="A2402B" ></Barcode>
    							<div>Code128 A | B | C:</div>
    							<Barcode type="code128c" value="22481203"></Barcode>
    					<Barcode type="code128a" value="EXAMPLE"></Barcode>
    							<Barcode type="code128b" value="example"></Barcode>
    							<br/>
    							<div>MSI 10 | 11:</div>
    					<Barcode type="msi10" value="12345"></Barcode>
    					<Barcode type="msi11" value="67890"></Barcode>
    							<div>Code39:</div>
    					<Barcode type="code39" value="*1234567AB" lineWidth={2} ></Barcode>
    			</div>
    		);
    	}
    }

    ReactDOM.render(<App />, document.querySelector("#root"));

    export default App;


Running the React application

Start the app with
npm start
and open localhost:3000 in your favorite web browser to see the output.

Read more about using Smart UI for React: https://www.htmlelements.com/docs/react/.

Getting Started with Vue Barcode Component


Setup Vue Environment

We will use vue-cli to get started. Let's install vue-cli

npm install -g @vue/cli

Then we can start creating our Vue.js projects with:

vue create my-project

Setup the Barcode

Open the "my-project" folder and run:

npm install smart-webcomponents

Setup with Vue 3.x

  • Make Vue ignore custom elements defined outside of Vue (e.g., using the Web Components APIs). Otherwise, it will throw a warning about an Unknown custom element, assuming that you forgot to register a global component or misspelled a component name.

    Open src/main.js in your favorite text editor and change its contents to the following:

    main.js

    import { createApp } from 'vue'
    import App from './App.vue'

    const app = createApp(App)

    app.config.isCustomElement = tag => tag.startsWith('smart-');
    app.mount('#app')

  • Open src/App.vue in your favorite text editor and change its contents to the following:

    App.vue

    <template>
      <div class="vue-root">
        <div class="container">
          <h3>The barcode element supports a wide range of the most common barcode types available</h3>
          <div>Pharmacode:</div>
          <smart-barcode id="pharma" type="pharmacode" value="1234"></smart-barcode>
          <div>Codabar:</div>
          <smart-barcode type="codabar" value="A2402B" ></smart-barcode>
          <div>Code128 A | B | C:</div>
          <smart-barcode type="code128c" value="22481203"></smart-barcode>
          <smart-barcode type="code128a" value="EXAMPLE"></smart-barcode>
          <smart-barcode type="code128b" value="example"></smart-barcode>
          <br/>
          <div>MSI 10 | 11:</div>
          <smart-barcode type="msi10" value="12345"></smart-barcode>
          <smart-barcode type="msi11" value="67890"></smart-barcode>
          <div>Code39:</div>
          <smart-barcode type="code39" value="*1234567AB*" line-width="2" ></smart-barcode>
        </div>
      </div>
    </template>

    <script>
    import { onMounted } from "vue";
    import "smart-webcomponents/source/styles/smart.default.css";
    import "smart-webcomponents/source/modules/smart.barcode.js";

    export default {
      name: "app",
      setup() {
        onMounted(() => {});
      }
    };
    </script>

    We can now use the smart-barcode with Vue 3. Data binding and event handlers will just work right out of the box.

Setup with Vue 2.x

  • Make Vue ignore custom elements defined outside of Vue (e.g., using the Web Components APIs). Otherwise, it will throw a warning about an Unknown custom element, assuming that you forgot to register a global component or misspelled a component name.

    Open src/main.js in your favorite text editor and change its contents to the following:

    main.js

    import Vue from 'vue'
    import App from './App.vue'

    Vue.config.productionTip = false
    Vue.config.ignoredElements = [
    'smart-barcode'
    ]

    new Vue({
      render: h => h(App),
    }).$mount('#app')
  • Open src/App.vue in your favorite text editor and change its contents to the following:

    App.vue

    <template>
      <div class="smart-demo container">

            <div>
                <section>
                    <div>
                        <h2>A barcode is a method of representing data in a visual, machine-readable form.</h2>
                        <div class="module">
                            <p>
                                Barcodes are ideal components for programmatically encoding data.
                                They are commonly used for storing data such as item serial numbers in retailers and warehouses.
                            </p>
                        </div>
                    </div>
                </section>

                <section>
                    <h2>Barcode rendering modes</h2>
                    <div class="module">
                        <p>
                            Barcodes can be rendered as an &lt;svg> and &lt;canvas> element.<br/>
                            Using the <b>svg</b> rendering mode is recommended as the barcode doesn't lose quality when it is zoomed.
                        </p>
                    </div>
                    <div class="module">
                        <smart-barcode render-as="svg" type="code128a" value="SVG RENDER"></smart-barcode>
                        <smart-barcode render-as="canvas" type="code128a" value="CANVAS REN"></smart-barcode>
                    </div>

                </section>

                <section>
                    <h2>Barcode Types</h2>
                    <div class="module">
                        <p>
                            The barcode element supports a wide range of the most common barcode types available:
                            <ul>
                                <li><b>PharmaCode</b></li>
                                <li><b>CodaBar</b></li>
                                <li><b>Code128A | Code128B | Code128C</b></li>
                                <li><b>MSI | MSI10 | MSI11 | MSI1010 | MSI1110</b></li>
                                <li><b>EAN8 | EAN13</b></li>
                                <li><b>Code39</b></li>
                                <li><b>Code93</b></li>
                            </ul>
                        </p>
                    </div>
                    <div >
                        <smart-barcode  type="pharmacode" value="12345"></smart-barcode>
                        <smart-barcode  type="code128c" value="22481203"></smart-barcode>
                        <smart-barcode  type="codabar" value="A2402B"></smart-barcode>
                        <smart-barcode  type="code39" value="*1234*"></smart-barcode>
                        <smart-barcode  type="code128a" value="EXAMPLE"></smart-barcode>
                    </div>

                </section>

                <section>
                    <h2>Appearance</h2>
                    <div class="module">
                        <p>The barcode's color, background color and bar dimensions can be customized by their respective properties.</p>
                        <p>The label of the barcode can be set to visible or hidden with <b>displayLabel</b>.
                            Its color, font, size, margins and position can be customized by their respective properties.</p>
                    </div>
                    <div class="module ">
                        <smart-barcode value="A2402B" label-position="top" label-font-size="30" label-color="orange" label-font="arial" line-color="orange"></smart-barcode>
                    </div>
                </section>

                <section>
                    <h2>Demo</h2>
                    <div class="module">
                    </div>
                    <div id="barcode-demo-container" class="module">
                        <div class="card-container">
                            <div class="card-body">
                                <h3>Dinner Table</h3>
                                <img height="150" alt="Dinner table" src="https://upload.wikimedia.org/wikipedia/commons/thumb/4/4f/Kitchen_table.jpg/1280px-Kitchen_table.jpg">
                                <smart-button class="success purchase-button">Purchase Now</smart-button>
                            </div>
                            <div class="card-footer">
                                <smart-barcode value="23849" type="code128c" label-font="arial"></smart-barcode>
                            </div>
                        </div>
                        <div class="card-container">
                            <div class="card-body">
                                <h3>Modern Wardrobe</h3>
                                <img height="150" alt="Modern Wardrobe" src="https://upload.wikimedia.org/wikipedia/commons/d/d6/Sliding-wardrobe.jpg">
                                <smart-button class="success purchase-button">Purchase Now</smart-button>
                            </div>
                            <div class="card-footer">
                                <smart-barcode value="86941" type="code128c" label-font="arial"></smart-barcode>
                            </div>
                        </div>
                        <div class="card-container">
                            <div class="card-body">
                                <h3>Office Chair</h3>
                                <img height="150" alt="Office Chair" src="https://upload.wikimedia.org/wikipedia/commons/e/ec/Aeron_chair_JN.jpg">
                                <smart-button class="success purchase-button">Purchase Now</smart-button>
                            </div>
                            <div class="card-footer">
                                <smart-barcode value="03278" type="code128c" label-font="arial"></smart-barcode>
                            </div>
                        </div>
                    </div>
                </section>
            </div>
        </div>
    </template>

    <script>
    import 'smart-webcomponents/source/modules/smart.barcode.js';
    import 'smart-webcomponents/source/modules/smart.button.js';
    import "smart-webcomponents/source/styles/smart.default.css";

    export default {
      name: "app"
    };
    </script>

    <style>
    /* fallback */
    @font-face {
        font-family: 'Material Icons';
        font-style: normal;
        font-weight: 400;
        src: url(https://fonts.gstatic.com/s/materialicons/v31/2fcrYFNaTjcS6g4U3t-Y5ZjZjT5FdEJ140U2DJYC3mY.woff2) format('woff2');
    }

            /* ------------ */
    .smart-demo {
    margin: 0 !important;
    }

    .smart-demo section > h2:first-of-type {
    	border-top: 1px solid rgba(0,0,0,.12);
    	font-weight: 400;
    	font-size: 24px;
    	line-height: 40px;
    	margin-bottom: 30px;
    	color: #3949ab;
    	padding-top: 80px;
    }

    #barcode-demo-container{
        display: flex;
        flex-wrap: wrap;
        gap: 25px;
    }

    .card-container{
        text-align: center;
        max-width: 280px;
        padding: 10px 10px;
        box-shadow: 0 3px 10px rgb(0 0 0 / 0.2);
    }

    .card-body{
        border-bottom: 1px solid black;
        margin-bottom: 10px;
    }

    .purchase-button{
        margin: 10px;
    }
    </style>

    We can now use the smart-barcode with Vue. Data binding and event handlers will just work right out of the box.
    We have bound the properties of the smart-barcode to values in our Vue component.

Running the Vue application

Start the app with
npm run serve
and open localhost:8080 in your favorite web browser to see the output below:

Read more about using Smart UI for Vue: https://www.htmlelements.com/docs/vue/.
