The following tutorial will show how to integrate custom component - Leaflet maps with the DockingLayout component.

We are going to create a simple demo with a Smart.DockingLayout component which will have two Panels. The first will have a log and the second will hold the Leaflet map.

Follow the steps:

  1. Download and Configure Smart Components - Smart components can be downloaded localy via NPM by entering the following command line:
    npm i smart-webcomponents
  2. index.html - Configure the HTML page for the demo:
    • Inside the head section of the page add the following references:

      Include the CSS file for the Smart Framework which we downloaded in the previous step.

      <link rel="stylesheet" href="../../source/styles/smart.default.css" type="text/css" />

      Add a reference to the CSS styles for the Leaflet Map.

      <link rel="stylesheet" href="" integrity="sha512-xwE/Az9zrjBIphAcBb3F6JVqxf46+CDLwfLMHloNu6KEQCAWi6HcDUbeOfBIptF7tcCzusKFjFw2yuvEpDL9wQ=="
      crossorigin="" />

      Add reference to the JS file for the Leaflet Map.

      <script src="" integrity="sha512-gZwIG9x3wUXg2hdXF6+rVkLF/0Vi9U8D2Ntg4Ga5I5BZpVkVxlJWbSQtXPSiUTtC0TjtGOmxa1AJPuV0CPthew=="

      Add a reference to the additional Lasso plugin that we are going to use for the Leaflet Map.

      <script src=""></script>
    • Inside the body section of the page:

      Add the html tag for the DockingLayout


      We are going to define the dataSource later in the javascript file for the demo.

      Add the Javascript module for the Smart DockingLayout component that will load all necessary JS files for the component.

      <script type="module" src="../../source/modules/smart.dockinglayout.js"></script>
  3. index.js - Configure the javascript for the page. This is where we will configure the components.

    First we need to set the dataSource for the DockingLayout:

        window.onload = function () {
            const docking = document.querySelector('smart-docking-layout');
            docking.layout = [
                    type: 'LayoutGroup',
                    orientation: 'horizontal',
                    items: [
                            type: 'LayoutGroup',
                            items: [
                                    type: 'LayoutPanel',
                                    id: 'tabPanel',
                                    label: 'Output Panel',
                                    items: [{
                                        label: 'Output',
                                        content: ' <div id="lassoResult">No markers selected</div>'
                                    type: 'LayoutPanel',
                                    label: 'Leaflet Map',
                                    items: [
                                            id: 'log',
                                            label: 'Map',
                                            headerPosition: 'none',
                                            content: '<div id="mapid"></div>'
                            orientation: 'vertical'

    Note that the configurations are made during window.onload stage.

    Initialize the Leaflet Map, add markers and configure the lasso pluging:

        const mymap ='mapid', { center: [0, 0], zoom: 0 });
        const lassoControl = L.control.lasso().addTo(mymap);
        const lassoResult = document.getElementById('lassoResult');
        const startLatLng = [51.5, -0.11];
        const latDelta = 0.01;
        const lngDelta = latDelta * 1.75;
        const markers = new Array(9).fill(undefined).map((_, i) => L.marker([startLatLng[0] + Math.floor(i / 3) * latDelta, startLatLng[1] + (i % 3) * lngDelta]));
        L.tileLayer('https://{s}{z}/{x}/{y}.png', {
            attribution: '© <a href="">OpenStreetMap</a> contributors'
        function resetSelectedState() {
            mymap.eachLayer(layer => {
                if (layer instanceof L.Marker) {
                    layer.setIcon(new L.Icon.Default());
            lassoResult.innerHTML = '';
        function setSelectedLayers(layers) {
            layers.forEach(layer => {
                if (layer instanceof L.Marker) {
                    layer.setIcon(new L.Icon.Default({ className: 'selected ' }));
            lassoResult.innerHTML = layers.length ? `Selected ${layers.length} Markers` : '';
        mymap.on('mousedown', () => {
        mymap.on('lasso.finished', event => {
        //Middle Marker
        mymap.setView([51.51, -0.0925], 13);

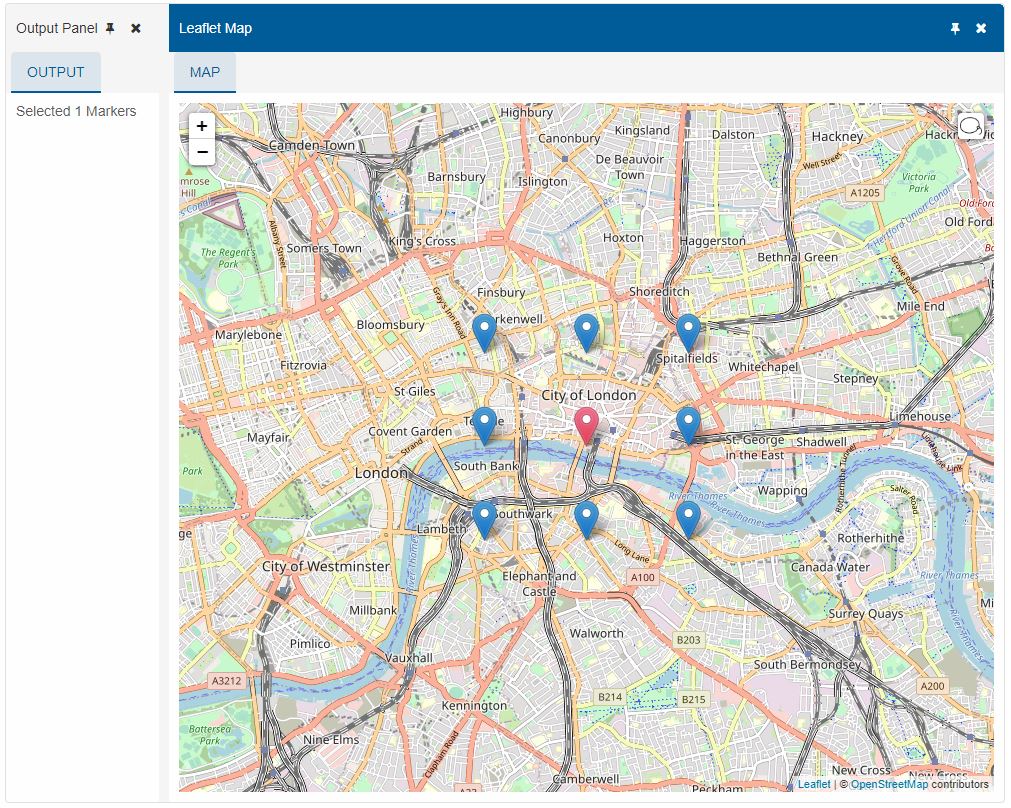

    The code above will create 8 markers on the Map and by pressing on the Lasso icon, located on in the top right corner of the Map, you can select a marker using the lasso.

    The resetSelectedState is used to reset the current Marker selection and clear the Log that is presented in the first DockingLayout panel with id "tabPanel".

    The setSelectedLayers will select the Markers and return a result in the log.

  4. styles.css - Addtional CSS file for the demo that will contain the following selectors:
       #mapid {
                height: 100%;
                width: 100%;
            .selected {
                filter: hue-rotate(135deg);

    The Leaflet map needs to have it's size set in order to be displayed.

Run the Demo

Run the demo on localhost and open it in a new browser tab:
