Blazor Grid - Export

Export Data

Smart.Grid can export the visualized grid into a new file, while applying the current filtering, sorting and grouping rules. The following file formats are supported:

  • XLSX
  • PDF
  • JSON
  • XML
  • CSV
  • TSV
  • HTML
  • JPEG
  • PNG

Required Files

To enable data export, it is necessary to include additional JavaScript files in your project.
Open the _Layout.cshtml(.NET 6) or _Host.cshtml file (server-side Blazor) or wwwroot/index.html (client-side WebAssembly Blazor) and add the following JS files:

<script src="_content/Smart.Blazor/js/assets/jszip.min.js"></script>
<script src="_content/Smart.Blazor/js/assets/pdfmake.min.js"></script>
<script src="_content/Smart.Blazor/js/assets/vfs_fonts.js"></script>
<script src="_content/Smart.Blazor/js/assets/html2canvas.min.js"></script>

Export Example

Create a new Button which calls the custom exportGrid function when clicked.
The file format is set as a parameter of the ExportData function

@inject WeatherForecastService ForecastService

<Grid @ref="grid" DataSource="@forecast">
      <Column DataField="Date" Label="Date" DataType="date" CellsFormat="M" AllowReorder="true"></Column>
      <Column DataField="TemperatureC" Label="Temp. (C)"  AllowReorder="true"></Column>
      <Column DataField="TemperatureF" Label="Temp. (F)"  AllowReorder="true"></Column>
      <Column DataField="Summary" Label="Summary" AllowReorder="true"></Column>

<Button OnClick="@exportGrid">Export Data</Button>

@code {
  Grid grid;

  private void exportGrid(){

  private WeatherForecast[] forecast;

  protected override async Task OnInitializedAsync()
      forecast = await ForecastService.GetForecastAsync(DateTime.Now);

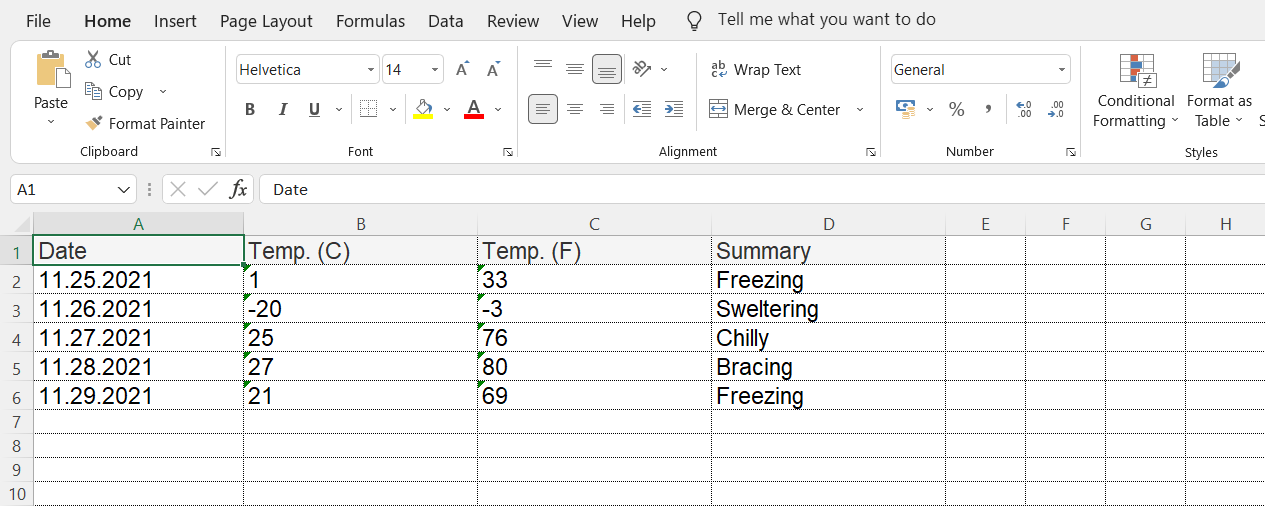

The demo above generates the following .xlsx Excel file:

Grid exported to excel

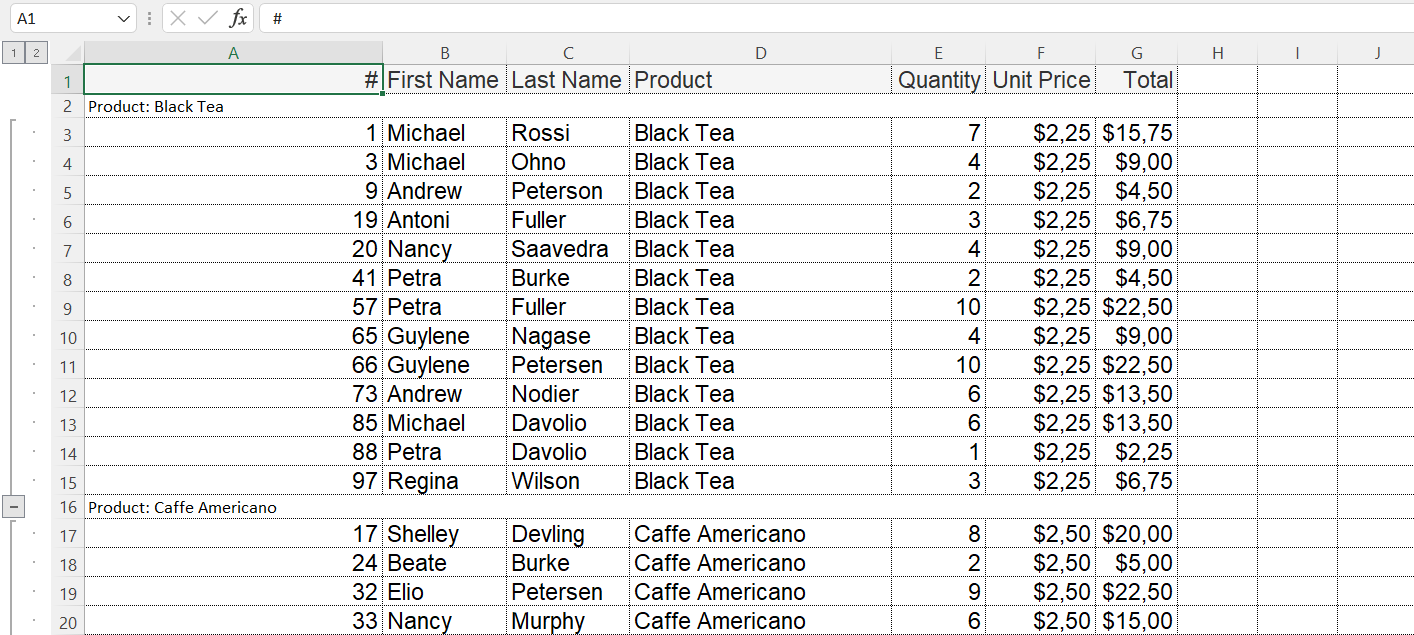

Grid with row hierarchy(TreeGrid / Grouped) can also maintain its hierarchy even when exported. In the Excel file, the rows can be collpased / expanded:

Grouped grid exported to excel

Handling Timezones

Due to the differnt ways browsers and Excel handle dates, there are cases when the values in Excel will not match those in the Grid.
For example, 2022/01/01 00:00:00 will export to 2021-12-31 for anyone to the east of the UTC Timezone.
Similarly, 2021/12/31 23:59:00 will export to 2022-01-01 for anyone to the west of the UTC TImezone.

To avoid this behavior, we strongly encourage developers to specify the timezone of the date values when setting them as DataSource of the Grid.
For example, in the date 2022-01-01T00:00:00.000Z, Z specifies that the timezone is set to UTC.
The local browser will automatically convert the date to the local timezone. After the export, the Excel sheet will contain the original 2022-01-01T00:00:00 date.
Example of date behavior:

  1. For the purpose of the demo, we want to display the date 2022/01/01 15:00 in our Grid. Create two data records.
    Set the first date value to the desired date, converted to the UTC Timezone. For example, for users in Central Europe, the value will be 2022-01-01T14:00:00.000Z.
    Because the first date value has a specified timezone, the browser will automatically convert it to the user's timezone.
    Set the second date value to the date we want to display - 20201-01-01T15:00:00. Since there is not timezone, the browser will assume it is local time.
    private object[] forecast = new object[]{
      new {
            Date = new DateTime(2022, 1, 1, 15, 0, 0).ToUniversalTime().ToString("o", System.Globalization.CultureInfo.InvariantCulture)
            //equal to "2022-01-01T14:00:00.000Z" for Central Europe,
            TemperatureC = 50,
            TemperatureF = 50,
            Summary = "Hot"
      new {
          Date = "2022-01-01T15:00:00",
          TemperatureC = 50,
          TemperatureF = 50,
          Summary = "Hot"

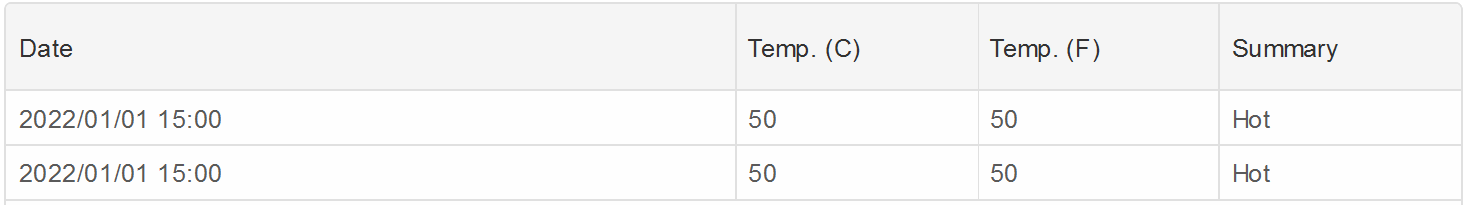

    We can see that after the conversion, the two dates are exactly the same - equal to 2022/01/01 15:00:

    Timezones in grid
  2. In the exported Excel file, we can see that the values remain the same, but were converted from local to UTC Timezone - 2022/01/01 14:00(for users in Central Europe)
    We can see that the first date value (the one with timezone) is the same as the original value we set to the Grid - 2022/01/01 14:00.
    But the second date value has changed, because it was converted from local timezone(15:00) to Universal Timezone (14:00).

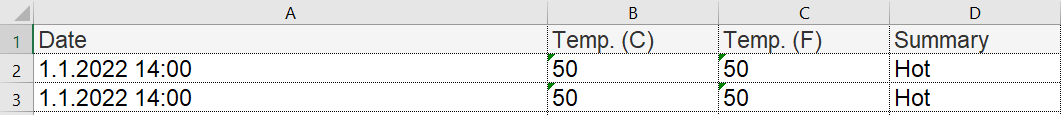

    That is why, we strongly recommend specifying the timezone of each date, so that the behavior of the date after the export is more predictable. Timezones in Excel


You can apply additional exporting options by creating a GridDataExport object and setting it as a DataExport property of the Grid

The GridDataExport objects accepts the following properties:

  • Header - sets whether the columns header will be exported.
    Accepts true(default) | false
  • FilterBy - sets whether the export uses the applied filters.
    Accepts object - default: null
  • GroupBy - sets the groups of the exported data.
    Accepts object - default: null
  • Style - sets a custom style object of the dataExport.
    Accepts object - default: null
  • FileName - sets the exported file's name.
    Accepts string - default: "jqxGrid"
  • PageOrientation - sets the page orientation, when exporting to PDF.
    Accepts GridDataExportPageOrientation.Landscape | Portrait(default)
  • ExpandChar - sets the expand char displayed when the Grid with row hierarchy(TreeGrid / Grouped) is exported.
    Accepts string - default: "+"
  • CollapseChar - sets the collapse char displayed when the Grid with row hierarchy(TreeGrid / Grouped) is exported.
    Accepts string - default: "-"
  • View - sets whether to export only the visible data of the Grid.
    Accepts true | false(default)
  • ViewStart - determines the start row index that will be exported or printed. View should be set to true.
    Accepts int - default: null
  • ViewEnd - determines the end row index that will be exported or printed. View should be set to true.
    Accepts int - default: null
  • RowIds - an array of row ids that denotes the rows to export.
    Accepts IEnumerable<object> - default: null
