Grid Appearance

Smart.Grid provides many ways to modify its appearance to best suit user requirements. The property/object that controls these features is appearance. Below you can find an overview of some of the major appearance-related features of the Grid:


More information: property appearance in the Grid API documentation.

Auto Height

To make Smart.Grid as high as its content, height: auto has to be applied in the Grid's CSS. This displays all rows without scrollbar. Please note that when displaying large data sets, auto height may cause performance hindrance and using Paging or Scrolling is recommended instead.

Cells Wrap

The text in Grid cells can wrap automatically when the property appearance.allowCellsWrap is set to true. This functionality is especially useful in conjuction with auto row height, which can be enabled by setting layout.rowHeight to 'auto'.

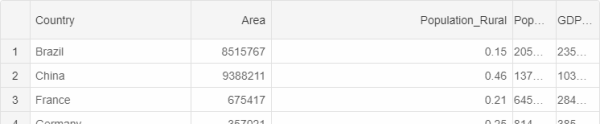

Row Header

In Smart.Grid, rows, as well as columns, can have headers. They are enabled by setting appearance.showRowHeader to true.

Additional properties, part of the appearance object, that control the behavior of row headers are:

  • showRowHeaderNumber - displays a row header number.
  • showRowHeaderEditIcon - displays an Edit icon when the row is in edit state.
  • showRowHeaderSelectIcon - displays a Select icon when the pointer is over the row header. It indicates that the user can select the row.
  • showRowHeaderFocusIcon - displays a Focus icon when the row is in focus state.
  • allowRowHeaderEdit - enables row header cells editing. More information can be found in the Grid Editing help topic.
  • allowRowHeaderSelection - sets or gets whether selection by clicking on a Row header is allowed. More information can be found in the Grid Selection help topic.

Alternating Rows

Smart.Grid provides alternating rows options. It can render alternation by one or multiple rows with optional custom alternation start and end. This behavior is controlled by the appearance.alternationStart, appearance.alternationEnd, and appearance.alternationCount properties.

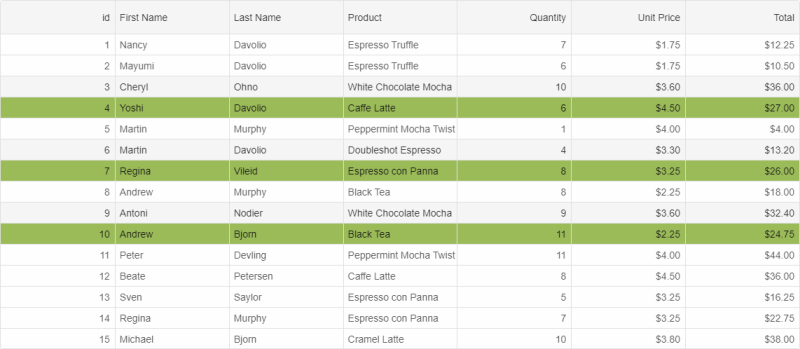

The image below shows a Grid with:

appearance: {
    alternationStart: 1,
    alternationEnd: 10,
    alternationCount: 3
},

Lines

Smart.Grid provides multiple line customization options. It can render horizontal, vertical, or both horizontal and vertical lines. This is controlled by the properties appearance.showRowLines (horizontal lines), appearance.showColumnLines (vertical cell lines), and appearance.showColumnHeaderLines (vertical column header lines) properties.

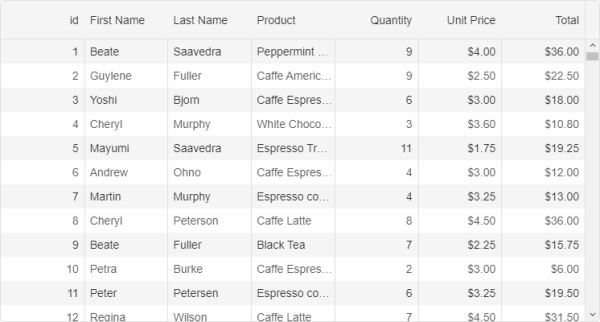

The image below shows a Grid with only appearance.showColumnLines set to true:

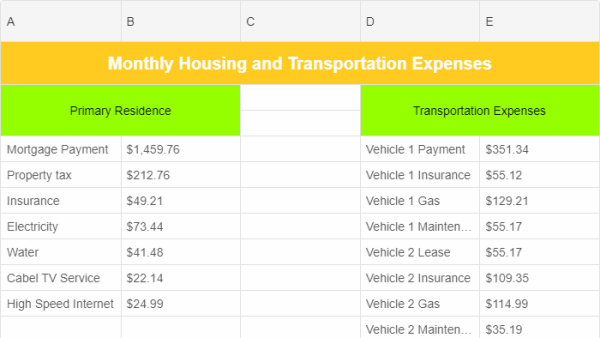

Merged Cells

Merging cells is available in Smart.Grid. This is achieved by setting the properties rowSpan (the number of rows the cell ocupies) and colSpan (the number of columns the cell ocupies) of a Grid cell's object. This object can be retrieved as follows:

const rows = grid.rows;

rows[1].cells[0].value = "Primary Residence";
rows[1].cells[0].colSpan = 2;
rows[1].cells[0].rowSpan = 2;
