QRCode Overview

Getting Started with QRcode Web Component

Smart UI for Web Components is distributed as smart-webcomponents NPM package. You can also get the full download from our website with all demos from the Download page.

Setup the QRcode

Smart UI for Web Components is distributed as smart-webcomponents NPM package

  1. Download and install the package.

    npm install smart-webcomponents

  2. Once installed, import the QRcode module in your application.

    <script type="module" src="node_modules/smart-webcomponents/source/modules/smart.qrcode.js"></script>

  3. Adding CSS reference

    The smart.default.css CSS file should be referenced using following code.

    <link rel="stylesheet" type="text/css" href="node_modules/smart-webcomponents/source/styles/smart.default.css" />

  4. Add the QRcode tag to your Web Page

    <smart-qrcode id="qrcode"></smart-qrcode>

  5. Create the QRcode Component

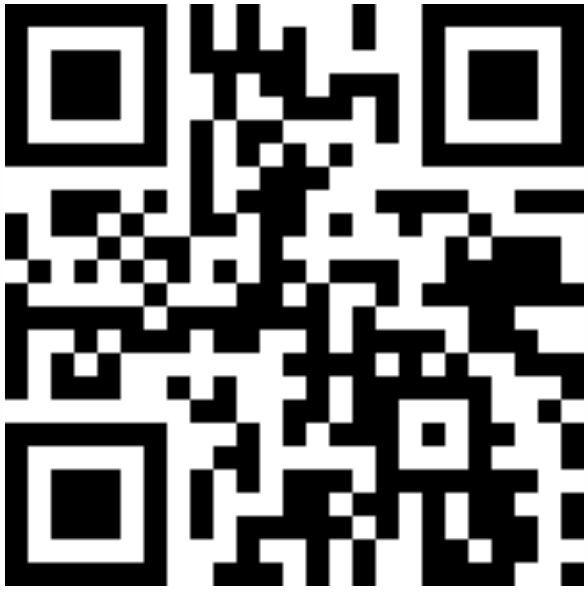

    The following code adds a simple QR Code to the page.

    <!DOCTYPE html>
    <html lang="en">
    <head>
     <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
     <script type="text/javascript" src="../../source/smart.element.js"></script>
     <script type="text/javascript" src="../../source/smart.barcode.js"></script>
     <script type="text/javascript" src="../../source/smart.qrcode.js"></script>
    </head>
    <body>
     <smart-qrcode value="HTMLELEMENTS.COM"></smart-qrcode>
    </body>
    </html>

    Demo

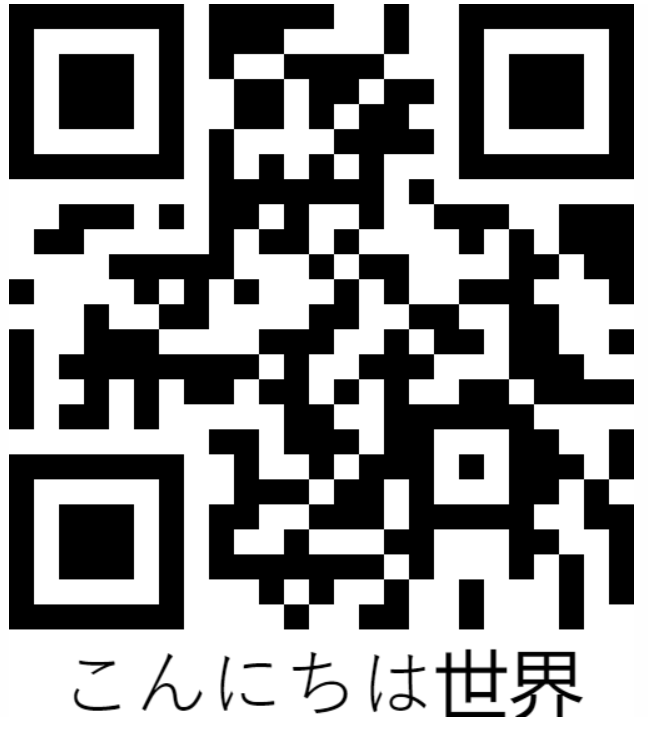

    The qrcode element supports all officialy adopted encoding modes as per ISO 2015:

    • Numeric
    • Alphanumeric
    • Byte / Binary
    • Kanji

    <!DOCTYPE html>
        <html lang="en">
        <head>
            <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
            <script type="text/javascript" src="../../source/smart.element.js"></script>
            <script type="text/javascript" src="../../source/smart.barcode.js"></script>
            <script type="text/javascript" src="../../source/smart.qrcode.js"></script>
        </head>
        <body>
            <smart-qrcode value="こんにちは世界" display-label="true"></smart-qrcode>
        </body>
        </html>

    Demo

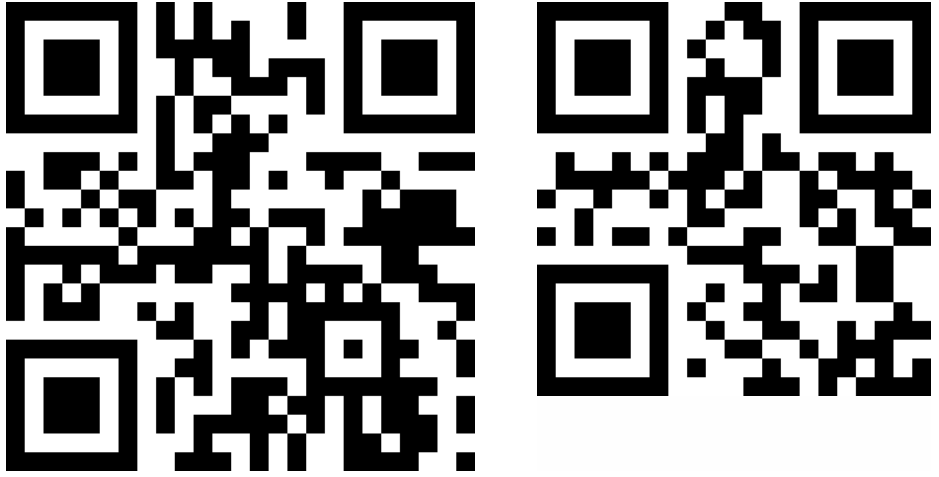

    The QR Code supports four different Error Correction Levels - L, M, Q, H.
    As per the ISO standard, the Error Correction Level L is the lowest and the H the highest.
    The higher the Error Correction Level, the higher is the amount of data that can be retrieved if part of the QR Code is damaged or hidden.

                        <smart-qrcode value="HTMLELEMENTS.COM" error-correction-level="H"></smart-qrcode>
                        <smart-qrcode value="HTMLELEMENTS.COM" error-correction-level="L"></smart-qrcode>


    Demo

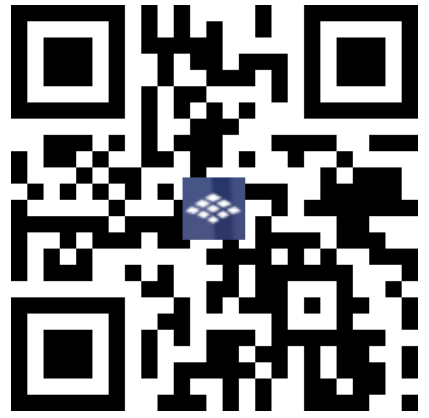

    When the Error Correction Level is sufficiently big, it is possible to embed an Image inside the QR Code.
    The maximum size of the image depends on the Error Correction Level and the QR Code value.

                        <smart-qrcode value="HTMLELEMENTS.COM" error-level="H" square-width="13"
                        embed-image="https://www.htmlelements.com/favicon-32x32.png" image-width="50" image-height="50">
                        </smart-qrcode>


    Demo

    Appearance

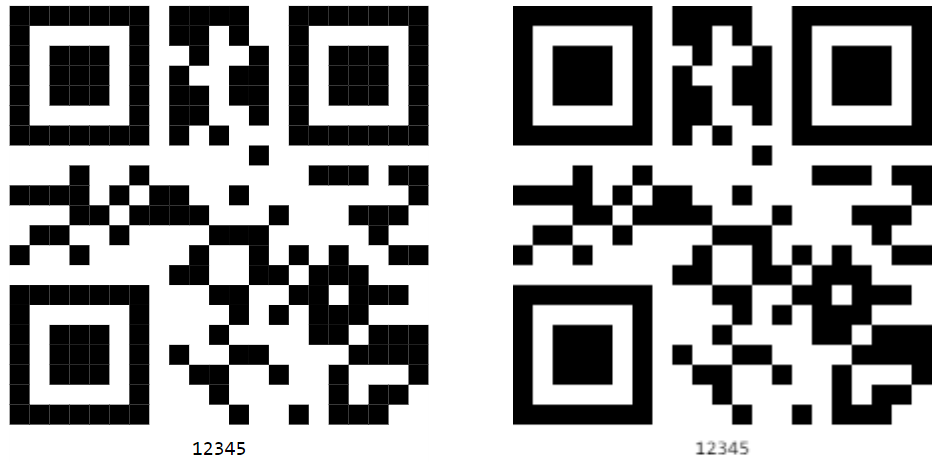

    The rendering mode is set using the renderAs property - svg(default) and canvas are supported.
    The recommended rendering mode is svg as the image quality remains the same as the QR Code is zoomed in.

    <!DOCTYPE html>
        <html lang="en">
        <head>
            <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
            <script type="text/javascript" src="../../source/smart.element.js"></script>
            <script type="text/javascript" src="../../source/smart.barcode.js"></script>
            <script type="text/javascript" src="../../source/smart.qrcode.js"></script>
        </head>
        <body>
            <smart-qrcode render-as="svg" value="12345"></smart-qrcode>
            <smart-qrcode render-as="canvas" value="12345"></smart-qrcode>
        </body>
        </html>

    Demo

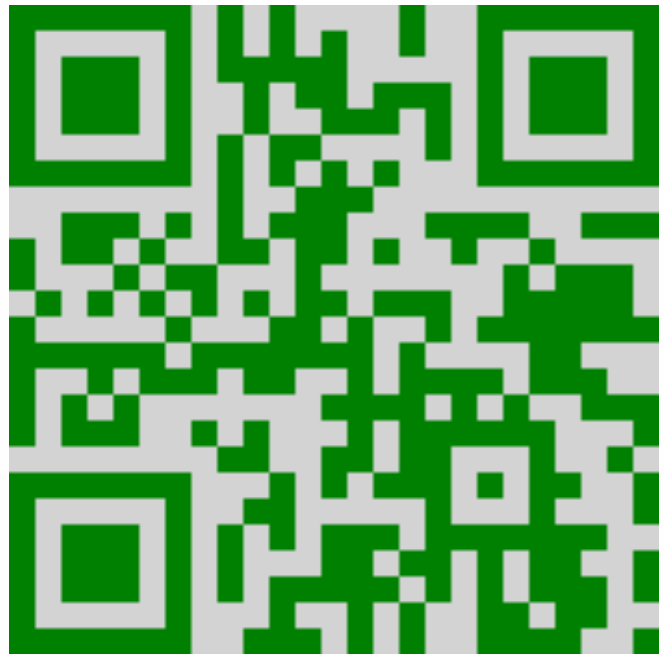

    The QR Code's color, background color and square dimensions can be customized by their respective properties:

    <smart-qrcode value="HTMLELEMENTS.COM" value="HTMLELEMENTS.COM" line-color="green" background-color="#D3D3D3" square-width="10"></smart-qrcode>

    Demo

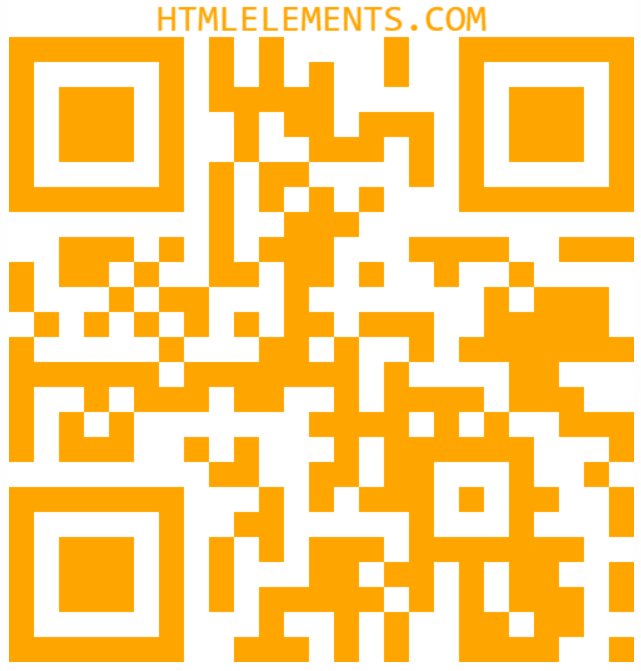

    The label of the QR Code can be set to visible or hidden with displayLabel. Its color, font, size, margins and position can be customized by their respective properties. When the qrcode is rendered as svg, the label can also be customized with CSS.

    <smart-qrcode value="HTMLELEMENTS.COM" line-color="orange" display-label="true" label-position="top" label-font-size="20" label-color="orange"></smart-qrcode>

    Behavior

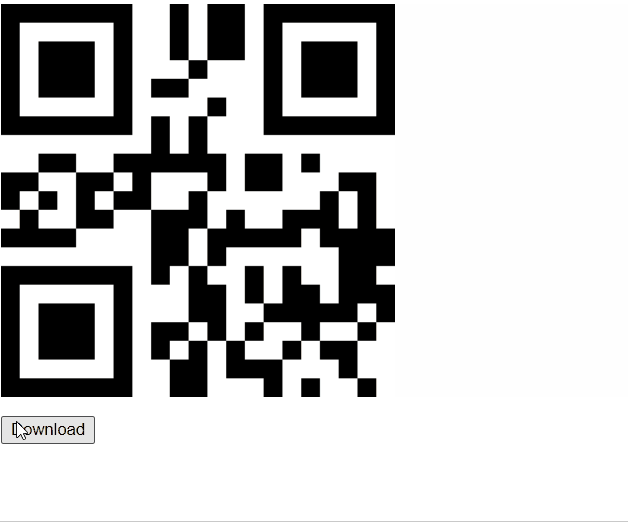

    Every valid qrcode can be exported to a downloadable file. The export method supports the following formats:

    • svg
    • png
    • jpg
    <script>
        function exportQRCode(){
            let qrcode1 = document.getElementById('export-qrcode');
            qrcode1.export('png', 'my-qrcode');
        }
    </script>
    <smart-qrcode id="export-qrcode" value="A2402B" label-position="top" label-font-size="30" label-color="orange" label-font="arial" line-color="orange"></smart-qrcode>
    <button onclick="exportQRCode()">Download</button>

    Demo

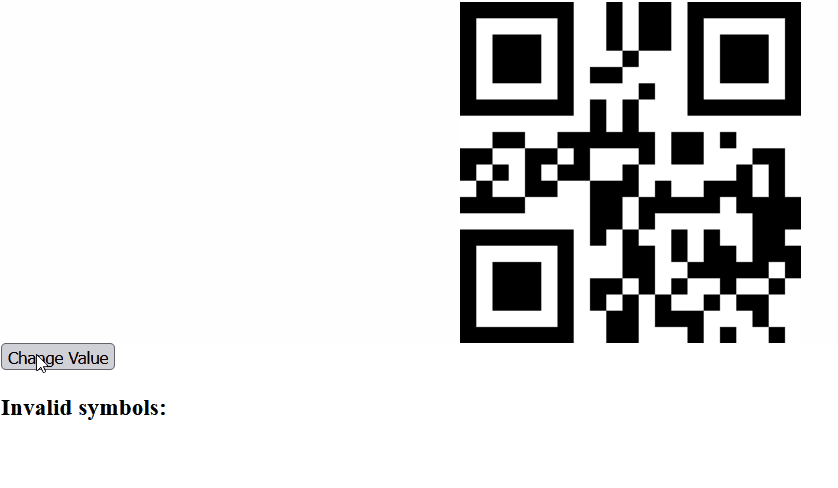

    Smart.QRcode contains a built-in validator, which depends on the qrcode type.
    In the case of a invalid value, the isValid method will return false and the invalid event will be triggered.

    The invalid event.detail contains multiple values that can indicate the validity of the qrcode:

    • invalidCharacters - An array indicating the invalid characters.
    • patternValidity - A boolean indicating the validity of the qrcode pattern.
    • lengthValidity - A boolean indicating the validity of the qrcode length.

    The demo below will output the illegal charcters of the qrcode:

    <!DOCTYPE html>
    <html lang="en">
    <head>
     <link rel="stylesheet" href="../../source/styles/smart.base.css" type="text/css" />
     <script type="text/javascript" src="../../source/smart.element.js"></script>
     <script type="text/javascript" src="../../source/smart.barcode.js"></script>
     <script type="text/javascript" src="../../source/smart.qrcode.js"></script>
     <script>
     window.onload = function(){
        var qrcode2 = document.getElementById('invalid-qrcode');
        const OnInvalid = (event) => {
                let invalidChars = event.detail.invalidCharacters;
                document.getElementById("invalid-box").textContent+= invalidChars.join(' and ')
            };

        qrcode2.addEventListener("invalid", OnInvalid);
    }
     function changeValue(){
        qrcode2 = document.getElementById('invalid-qrcode');
        qrcode2.value = "AB1230ШЪ"
    }
     </script>
    </head>
    <body>
     <smart-qrcode id="invalid-qrcode" value="AB1230"></smart-qrcode>
     <button onclick="changeValue()">Change Value</button>
     <h3 id="invalid-box">Invalid symbols:</h3>
    </body>
    </html>

    Demo


Another option is to create the QRcode is by using the traditional Javascript way:
	const qrcode = document.createElement('smart-qrcode');

	qrcode.disabled = true;
	document.body.appendChild(qrcode);


Smart framework provides a way to dynamically create a web component on demand from a DIV tag which is used as a host. The following imports the web component's module and creates it on demand, when the document is ready. The #qrcode is the ID of a DIV tag.

	import "../../source/modules/smart.qrcode.js";

	document.readyState === 'complete' ? init() : window.onload = init;

	function init() {
		const qrcode = new Smart.QRcode('#qrcode', [object Object]);
	}


  • Open the page in your web server.
  • Create, Append, Remove, Get/Set Property, Invoke Method, Bind to Event


    Create a new element:
    	const qrcode = document.createElement('smart-qrcode');


    Append it to the DOM:
    	document.body.appendChild(qrcode);


    Remove it from the DOM:
    	qrcode.parentNode.removeChild(qrcode);


    Set a property:
    	qrcode.propertyName = propertyValue;


    Get a property value:
    	const propertyValue = qrcode.propertyName;


    Invoke a method:
    	qrcode.methodName(argument1, argument2);


    Add Event Listener:
    	const eventHandler = (event) => {
    	   // your code here.
    	};

    	qrcode.addEventListener(eventName, eventHandler);


    Remove Event Listener:
    	qrcode.removeEventListener(eventName, eventHandler, true);


    Using with Typescript

    Smart Web Components package includes TypeScript definitions which enables strongly-typed access to the Smart UI Components and their configuration.

    Inside the download package, the typescript directory contains .d.ts file for each web component and a smart.elements.d.ts typescript definitions file for all web components. Copy the typescript definitions file to your project and in your TypeScript file add a reference to smart.elements.d.ts

    Read more about using Smart UI with Typescript.

    Getting Started with Angular QRcode Component

    Setup Angular Environment

    Angular provides the easiest way to set angular CLI projects using Angular CLI tool.

    Install the CLI application globally to your machine.

    npm install -g @angular/cli

    Create a new Application

    ng new smart-angular-qrcode

    Navigate to the created project folder

    cd smart-angular-qrcode

    Setup the QRcode

    Smart UI for Angular is distributed as smart-webcomponents-angular NPM package

    1. Download and install the package.
      npm install smart-webcomponents-angular
    2. Adding CSS reference

      The following CSS file is available in ../node_modules/smart-webcomponents-angular/ package folder. This can be referenced in [src/styles.css] using following code.

      @import 'smart-webcomponents-angular/source/styles/smart.default.css';

      Another way to achieve the same is to edit the angular.json file and in the styles add the style.

      "styles": [
      		"node_modules/smart-webcomponents-angular/source/styles/smart.default.css"
      	]
      If you want to use Bootstrap, Fluent or other themes available in the package, you need to add them after 'smart.default.css'.
    3. Example with Angular Standalone Components


      app.component.html

       <div class="container">
          <h3>QR Code is a two-dimensional version of the barcode. It typically contains data that points to a website or application.</h3>
          <smart-qrcode #qrcode value="HTMLELEMENTS.COM"></smart-qrcode>
      </div>

      app.component.ts

       import { Component, ViewChild, OnInit, AfterViewInit } from '@angular/core';
      import { QRcodeComponent } from 'smart-webcomponents-angular/qrcode';


      import { CommonModule } from '@angular/common';
      import { RouterOutlet } from '@angular/router';
      import { QRcodeModule } from 'smart-webcomponents-angular/qrcode';

      @Component({
          selector: 'app-root',
      	standalone: true,
      	imports: [CommonModule, QRcodeModule, RouterOutlet],
          templateUrl: './app.component.html',
      	styleUrls: ['./app.component.css']
      })

      export class AppComponent implements AfterViewInit, OnInit {
      	@ViewChild('qrcode', { read: QRcodeComponent, static: false }) qrcode!: QRcodeComponent;


      	ngOnInit(): void {
      		// onInit code.
      	}

      	ngAfterViewInit(): void {
      		// afterViewInit code.
      		this.init();
          }

      	init(): void {
      		// init code.

          // no code

      	}
      }

    4. Example with Angular NGModule


      app.component.html

       <div class="container">
          <h3>QR Code is a two-dimensional version of the barcode. It typically contains data that points to a website or application.</h3>
          <smart-qrcode #qrcode value="HTMLELEMENTS.COM"></smart-qrcode>
      </div>

      app.component.ts

       import { Component, ViewChild, OnInit, AfterViewInit } from '@angular/core';
      import { QRcodeComponent } from 'smart-webcomponents-angular/qrcode';


      @Component({
          selector: 'app-root',
          templateUrl: './app.component.html',
      	styleUrls: ['./app.component.css']
      })

      export class AppComponent implements AfterViewInit, OnInit {
      	@ViewChild('qrcode', { read: QRcodeComponent, static: false }) qrcode!: QRcodeComponent;


      	ngOnInit(): void {
      		// onInit code.
      	}

      	ngAfterViewInit(): void {
      		// afterViewInit code.
      		this.init();
          }

      	init(): void {
      		// init code.

          // no code

      	}
      }

      app.module.ts

       import { NgModule } from '@angular/core';
      import { BrowserModule } from '@angular/platform-browser';
      import { ButtonModule } from 'smart-webcomponents-angular/button';
      import { QRcodeModule } from 'smart-webcomponents-angular/qrcode';

      import { AppComponent } from './app.component';

      @NgModule({
          declarations: [ AppComponent ],
          imports: [ BrowserModule, QRcodeModule, ButtonModule ],
          bootstrap: [ AppComponent ]
      })

      export class AppModule { }


    Running the Angular application

    After completing the steps required to render a QRcode, run the following command to display the output in your web browser

    ng serve
    and open localhost:4200 in your favorite web browser.

    Read more about using Smart UI for Angular: https://www.htmlelements.com/docs/angular-cli/.

    Getting Started with React QRcode Component

    Setup React Environment

    The easiest way to start with React is to use NextJS Next.js is a full-stack React framework. It’s versatile and lets you create React apps of any size—from a mostly static blog to a complex dynamic application.

    npx create-next-app my-app
    cd my-app
    npm run dev
    or
    yarn create next-app my-app
    cd my-app
    yarn run dev

    Preparation

    Setup the QRcode

    Smart UI for React is distributed as smart-webcomponents-react package

    1. Download and install the package.

      In your React Next.js project, run one of the following commands to install Smart UI QRcode for React

      With NPM:

      npm install smart-webcomponents-react
      With Yarn:
      yarn add smart-webcomponents-react

    2. Once installed, import the React QRcode Component and CSS files in your application and render it. app.js

      import 'smart-webcomponents-react/source/styles/smart.default.css';
      import React from "react";
      import ReactDOM from 'react-dom/client';
      import { QRcode } from 'smart-webcomponents-react/qrcode';

      class App extends React.Component {

      	componentDidMount() {
      	}

      	render() {
      		return (
      			<div className="container">
      					<h3>QR Code is a two-dimensional version of the barcode. It typically contains data that points to a website or application.</h3>
      					<QRcode value="HTMLELEMENTS.COM"></QRcode>
      			</div>
      		);
      	}
      }



      export default App;


    Running the React application

    Start the app with
    npm run dev
    or
    yarn run dev
    and open localhost:3000 in your favorite web browser to see the output.

    Setup with Vite

    Vite (French word for "quick", pronounced /vit/, like "veet") is a build tool that aims to provide a faster and leaner development experience for modern web projects
    With NPM:
    npm create vite@latest

    With Yarn:
    yarn create vite

    Then follow the prompts and choose React as a project.

    Navigate to your project's directory. By default it is 'vite-project' and install Smart UI for React

    In your Vite project, run one of the following commands to install Smart UI QRcode for React

    With NPM:

    npm install smart-webcomponents-react

    With Yarn:
    yarn add smart-webcomponents-react


    Open src/App.tsx App.tsx

    import 'smart-webcomponents-react/source/styles/smart.default.css';
    import React from "react";
    import ReactDOM from 'react-dom/client';
    import { QRcode } from 'smart-webcomponents-react/qrcode';

    class App extends React.Component {

    	componentDidMount() {
    	}

    	render() {
    		return (
    			<div className="container">
    					<h3>QR Code is a two-dimensional version of the barcode. It typically contains data that points to a website or application.</h3>
    					<QRcode value="HTMLELEMENTS.COM"></QRcode>
    			</div>
    		);
    	}
    }



    export default App;


    Read more about using Smart UI for React: https://www.htmlelements.com/docs/react/.

    Getting Started with Vue QRcode Component


    Setup Vue with Vite

    In this section we will introduce how to scaffold a Vue Single Page Application on your local machine. The created project will be using a build setup based on Vite and allow us to use Vue Single-File Components (SFCs). Run the following command in your command line
    npm create vue@latest

    This command will install and execute create-vue, the official Vue project scaffolding tool. You will be presented with prompts for several optional features such as TypeScript and testing support:
    ✔ Project name: …
    ✔ Add TypeScript? … No / Yes
    ✔ Add JSX Support? … No / Yes
    ✔ Add Vue Router for Single Page Application development? … No / Yes
    ✔ Add Pinia for state management? … No / Yes
    ✔ Add Vitest for Unit testing? … No / Yes
    ✔ Add an End-to-End Testing Solution? … No / Cypress / Playwright
    ✔ Add ESLint for code quality? … No / Yes
    ✔ Add Prettier for code formatting? … No / Yes

    Scaffolding project in ./...
    Done.

    If you are unsure about an option, simply choose No by hitting enter for now. Once the project is created, follow the instructions to install dependencies and start the dev server:
    cd
    npm install
    npm install smart-webcomponents
    npm run dev

    • Make Vue ignore custom elements defined outside of Vue (e.g., using the Web Components APIs). Otherwise, it will throw a warning about an Unknown custom element, assuming that you forgot to register a global component or misspelled a component name.

      Open vite.config.js in your favorite text editor and change its contents to the following:

      vite.config.js

      import { fileURLToPath, URL } from 'node:url'

      import { defineConfig } from 'vite'
      import vue from '@vitejs/plugin-vue'

      // https://vitejs.dev/config/
      export default defineConfig({
        plugins: [
          vue({
            template: {
              compilerOptions: {
                isCustomElement: tag => tag.startsWith('smart-')
              }
            }
          })
        ],
        resolve: {
          alias: {
            '@': fileURLToPath(new URL('./src', import.meta.url))
          }
        }
      })

    • Open src/App.vue in your favorite text editor and change its contents to the following:

      App.vue

      <template>
        <div class="vue-root">
          <div class="container">
              <h3>QR Code is a two-dimensional version of the barcode. It typically contains data that points to a website or application.</h3>
      		<smart-qrcode  value="HTMLELEMENTS.COM"></smart-qrcode>
          </div>
        </div>
      </template>

      <script>
      import { onMounted } from "vue";
      import "smart-webcomponents/source/styles/smart.default.css";
      import "smart-webcomponents/source/modules/smart.qrcode.js";

      export default {
        name: "app",
        setup() {
          onMounted(() => {});
        }
      };
      </script>

      We can now use the smart-qrcode with Vue 3. Data binding and event handlers will just work right out of the box.

    Running the Vue application

    Start the app with
    npm run dev
    and open http://localhost:5173/ in your favorite web browser to see the output below:
    When you are ready to ship your app to production, run the following:
    npm run build
    This will create a production-ready build of your app in the project's ./dist directory.

    Read more about using Smart UI for Vue: https://www.htmlelements.com/docs/vue/.
