Next.js

Next.js is a React Framework that provides a solution to all of the following ReactJS problems:

  • Code has to be bundled using a bundler like webpack and transformed using a compiler like Babel.
  • You need to do production optimizations such as code splitting.
  • You might want to statically pre-render some pages for performance and SEO. You might also want to use server-side rendering or client-side rendering.
  • You might have to write some server-side code to connect your React app to your data store.

In the following tutorial we will be creating a new Next.js project that will use the Smart.Grid component.

Document content sections:

Setup

First, let's make sure that the development environment is prepared. The following requiremets should be met:

  • Node.js installed - version 10.13 or later.
  • A Text editor and a terminal.
  1. Create a new Next.js App

    To create a new Next.js app open a new terminal from the desired project location and enter the following command:

    npx create-next-app nextjs-grid --use-npm

    This command will create the app.

  2. Download smart-webcomponents-react library

    Navigate to the nextjs-grid and open a CMD from inside the folder and run the following command:

    npm i smart-webcomponents-react

    This command will download the Smart Webcomponent React Components which includes the Smart.Grid.

  3. Configure the Home Page of the App

    Navigte to

    nextjs-grid/pages/index.js
    the file which contains the home page of the application.

    Every page represents a React components. Let's modify it in order to include a Smart.Grid React component.

    The index.js file should have the following contents:

    import Head from 'next/head';
    import dynamic from 'next/dynamic';
    import 'smart-webcomponents-react/source/styles/smart.default.css';
    import styles from '../styles/Home.module.css';
    import GetData from '../public/data'; //NextJS cannot load named modules

    //Dynamically import the Smart.Grid component
    const Grid = dynamic(() => import('smart-webcomponents-react/grid'), {
      ssr: false, //no server-side rendering
      loading: () => <p>Loading...</p>
    });

    function Home() {
      const columns = [{
        label: 'First Name',
        dataField: 'firstName'
      },
      {
        label: 'Last Name',
        dataField: 'lastName'
      },
      {
        label: 'Product',
        dataField: 'productName'
      },
      {
        label: 'Quantity',
        dataField: 'quantity',
        align: 'right',
        cellsAlign: 'right',
      },
      {
        label: 'Unit Price',
        dataField: 'price',
        align: 'right',
        cellsAlign: 'right',
        cellsFormat: 'c2'
      },
      {
        label: 'Total',
        dataField: 'total',
        align: 'right',
        cellsAlign: 'right',
        cellsFormat: 'c2'
      }],
        selection = {
          enabled: true,
          checkBoxes: {
            enabled: true
          }
        },
        dataSource = GetData(300),
        dataSourceSettings = {
          dataFields: [
            { name: 'id', dataType: 'number' },
            { name: 'firstName', dataType: 'string' },
            { name: 'lastName', dataType: 'string' },
            { name: 'productName', dataType: 'string' },
            { name: 'quantity', dataType: 'number' },
            { name: 'price', dataType: 'number' },
            { name: 'total', dataType: 'number' }
          ]
        };

      return (
        <div className={styles.container}>
          <Head>
            <title>Create Next App</title>
            <meta name="description" content="Generated by create next app" />
            <link rel="icon" href="/favicon.ico" />
          </Head>

          <main className={styles.main}>
            <h1 className={styles.title}>
              Welcome to Next.js!
            </h1>

            <Grid className={styles.smartGrid} id="grid" columns={columns} selection={selection} dataSource={dataSource} dataSourceSettings={dataSourceSettings}></Grid>
          </main>

          <footer className={styles.footer}>
            <a
              href="https://www.htmlelements.com/react/demos/grid/grid-chart-dynamic-data/"
              target="_blank"
              rel="noopener noreferrer"
            >
              Powered by{' '}
              <img src="https://www.htmlelements.com/wp-content/design/assets/images/logo-htmlelements.svg" className={styles.imgLogo} />
            </a>
          </footer>
        </div>
      );
    }

    export default Home;


    The Smart.Grid component is loaded dynamically because we don't want the component to be rendered on the Server side.

    Remember to include the smart.default.css file which contains the Styles for the Smart Library.

    Also notice that an additional GetData module is created that generates random arrays of data to be applied as the dataSource for the Grid.

  4. Add additional page styles

    The page styles are defined inside the Home.module.css which is located at

    nextjs-grid/styles/Home.module.css

    Add the following selectors to the bottom of the file:

    @media (max-width: 600px) {
      .grid {
        width: 100%;
        flex-direction: column;
      }

      .main {
        width: 100%;
      }

      .smartGrid {
        margin: 20px auto;
      }
    }

    .imgLogo {
      padding: 20px;
      margin-left: 10px;
    }

    .smartGrid {
      width: 100%;
    }

    We will also modify the styles of the page sections a bit with the following changes:

    .container {
      min-height: 100vh;
      padding: 0 0.5rem;
      display: flex;
      flex-direction: column;
      justify-content: center;
      align-items: center;
      background: linear-gradient(135deg, rgb(12, 61, 120) 0px, rgb(252, 55, 82) 100%);
      color: white;
    }

    .main {
      flex: 1;
      display: flex;
      flex-direction: column;
      justify-content: center;
      align-items: center;
      width: 70%;
      justify-content: space-evenly;
    }

Build The Application

Running the Dev Server

Navigate to the new nextjs-grid folder that contains the app and from there open a new terminal and run the following command:

npm run dev

This command will run the development server on port 3000 by default.

The result of executing the command should be the following:

> nextjs-grid@0.1.0 dev C:\Users\Dell\Documents\GitHub\Team\demos\grid\nextjs-grid
> next dev

ready - started server on 0.0.0.0:3000, url: http://localhost:3000
info  - Using webpack 5. Reason: Enabled by default https://nextjs.org/docs/messages/webpack5
event - compiled successfully
event - build page: /next/dist/pages/_error
wait  - compiling...
event - compiled successfully

Open a browser and go to the http://localhost:3000 link in order to view the app

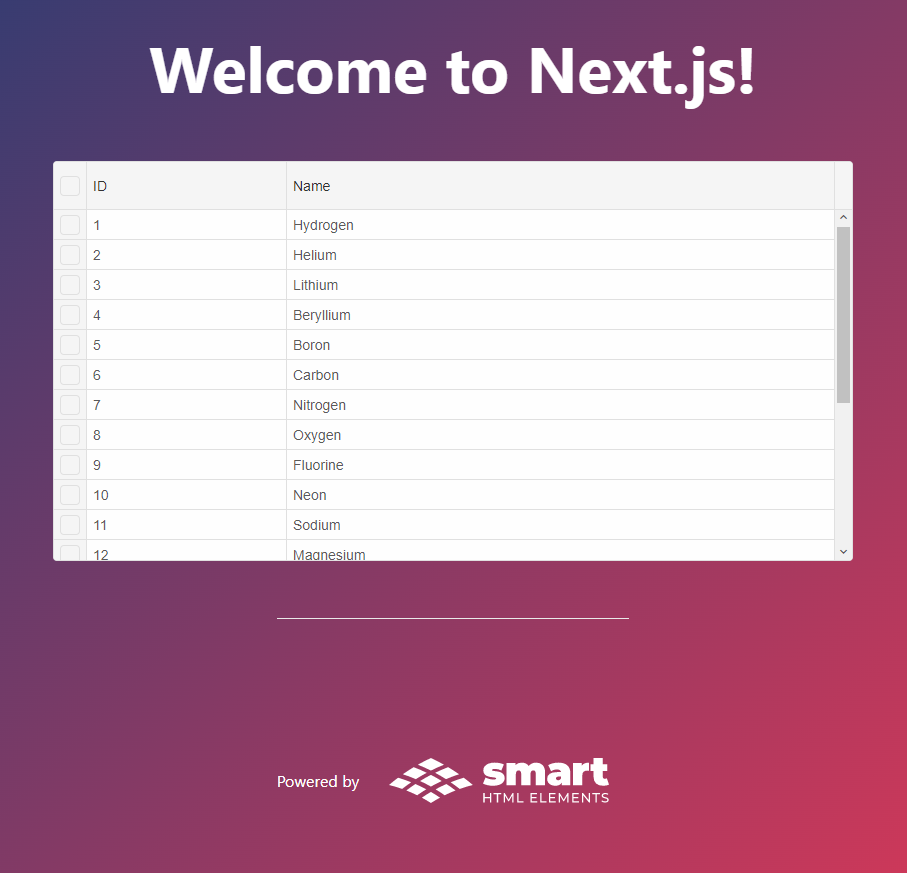

The result should be the following:

NextJS Grid
