Column Hierarchy

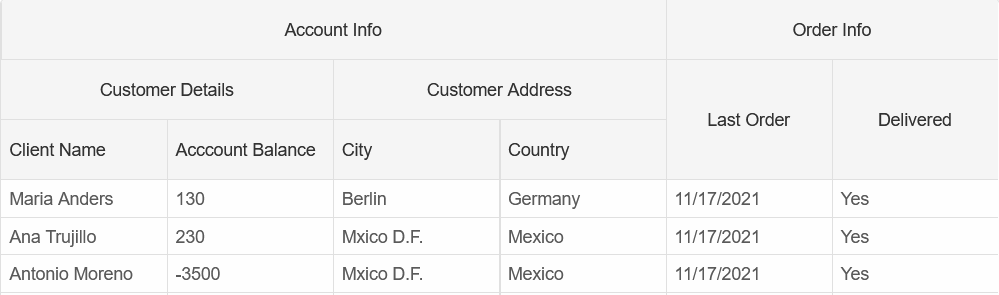

Smart.Grid allows you to establish column hierarchy by grouping the columns into multi-column headers using ColumnGroups

First, you need to specify the multi-column headers by creating an array of GridColumnGroups

<Grid Datasource="@clients" ColumnGroups="@columnGroups">
    <Columns>
        <Column DataField="Name" Label="Client Name"></Column>
        <Column DataField="Balance" Label="Acccount Balance"></Column>
        <Column DataField="City" Label="City"></Column>
        <Column DataField="Country" Label="Country"></Column>
        <Column DataField="LastOrder" Label="Last Order"></Column>
        <Column DataField="Delivered" Label="Delivered"></Column>
    </Columns>
</Grid>

@code{
  List<GridColumnGroup> columnGroups = new List<GridColumnGroup>()
    {
        new GridColumnGroup()
        {
            Label = "Customer Details",
            Align = HorizontalAlignment.Center,
            Name = "Details",
            ParentGroup = "AccountInfo"
        },
        new GridColumnGroup()
        {
            Label = "Customer Address",
            Align = HorizontalAlignment.Center,
            Name = "Address",
            ParentGroup = "AccountInfo"
        },
        new GridColumnGroup()
        {
            Label = "Order Info",
            Align = HorizontalAlignment.Center,
            Name = "OrderInfo"
        },
        new GridColumnGroup()
        {
            Label = "Account Info",
            Align = HorizontalAlignment.Center,
            Name = "AccountInfo",
        },
    };
}

Then set the ColumnGroup property of each column:

<Grid Datasource="@clients" ColumnGroups="@columnGroups">
    <Columns>
        <Column DataField="Name" Label="Client Name" ColumnGroup="Details"></Column>
        <Column DataField="Balance" Label="Acccount Balance" ColumnGroup="Details"></Column>
        <Column DataField="City" Label="City" ColumnGroup="Address"></Column>
        <Column DataField="Country" Label="Country" ColumnGroup="Address"></Column>
        <Column DataField="LastOrder" Label="Last Order" ColumnGroup="OrderInfo"></Column>
        <Column DataField="Delivered" Label="Delivered" ColumnGroup="OrderInfo"></Column>
    </Columns>
</Grid>

GridColumnGroup

The GridColumnGroup accepts the following properties:

• Label - specifies the Header Title that will be displayed to the user
• Name - specifies the name of the group.
  Note that the columns will use this value, not Label, to attach to a column group
• ParentGroup - not required - specifies the the name of the parent group.
• Align - not required - specifies the horizontal align.
  Possible values are HorizontalAlignment.Left | Center | Right
• VerticalAlign - not required - specifies the vertical align.
  Possible values are VerticalAlignment.Top | Center | Bottom
