smart-html-elements

Smart UI with XMLUI Integration

Creating XMLUI HelloWorld Component & Using Smart UI for React

This document provides a complete guide on how to build and use the Smart with the XMLUI Framework. Visit the official XMLUI site

This tutorial demonstrates how to build a basic HelloWorld component using XMLUI and integrate Smart UI for React components into the same XMLUI-driven React application.

XMLUI components are made of three main parts:

Native React component (HelloWorldNative.tsx) - The actual React implementation
Component metadata (HelloWorld.tsx) - Describes props and integrates with XMLUI
For visual components, a .scss file (HelloWorld.module.scss)

This separation allows XMLUI to understand your component's interface while maintaining clean React code.

Prerequisites

Node.js 20+
React + TypeScript knowledge
Basic understanding of XMLUI markup & Smart UI

1. Create your project folders & Install Dependencies

md xmlui-hello-world
cd xmlui-hello-world

This creates a fresh project directory where you'll build your component from scratch.

npm install --save-dev xmlui

Now let's update the package.json with the proper configuration for our extension:

 {
  "name": "xmlui-hello-world",
  "version": "0.1.0",
  "type": "module",
  "scripts": {
    "build:extension": "xmlui build-lib"
  },
  "devDependencies": {
    "xmlui": "*"
  },
  "main": "./dist/xmlui-hello-world.js",
  "module": "./dist/xmlui-hello-world.mjs",
  "exports": {
    ".": {
      "import": "./dist/xmlui-hello-world.mjs",
      "require": "./dist/xmlui-hello-world.js"
    }
  },
  "files": [
    "dist"
  ]
}

Now let's install Smart UI for React.

npm install xmlui smart-webcomponents-react

Smart UI components are standard React components. To use them in XMLUI, wrap them with XMLUI metadata just like custom components.

2. Project Structure

src/
├─ HelloWorldNative.tsx
├─ HelloWorld.tsx
├─ HelloWorld.module.scss
└─ index.tsx
text-app/
├─ index.html
└─ Main.xmlui

3. HelloWorld Native React Component(HelloWorldNative.tsx)

We will add the Smart.Table and Smart.Button components and enable the following Table features: Sorting, Filtering, Editing and Selection.

import React, { useState } from "react";
import styles from "./HelloWorld.module.scss";
import 'smart-webcomponents-react/source/styles/smart.default.css';
import { Button } from 'smart-webcomponents-react/button';
import { Table } from 'smart-webcomponents-react/table';

type Props = {
  id?: string;
  message?: string;
};

export const defaultProps = {
  message: "Hello, World!",
};

export function HelloWorld({
  id,
  message = defaultProps.message,
}: Props) {
  const [clickCount, setClickCount] = useState(0);

  const handleClick = () => {
    setClickCount(clickCount + 1);
  };

  return (
    <div className={styles.container} id={id}>
      <h2 className={styles.message}>{message}</h2>
      <Button onClick={handleClick}>
        Click me!
      </Button>
      <div className={styles.counter}>Clicks: {clickCount}</div>
	  <h3>Smart UI Table</h3>
	  <Table sortMode={"one"} filtering={true} filterRow={true} selection={true} editMode={"cell"}>
			<table>
				<thead>
					<tr>
						<th scope="col">Country</th>
						<th scope="col">Area</th>
						<th scope="col">Population_Rural</th>
						<th scope="col">Population_Total</th>
						<th scope="col">GDP_Total</th>
					</tr>
				</thead>
				<tbody>
					<tr>
						<td>Brazil</td>
						<td>8515767</td>
						<td>0.15</td>
						<td>205809000</td>
						<td>2353025</td>
					</tr>
					<tr>
						<td>China</td>
						<td>9388211</td>
						<td>0.46</td>
						<td>1375530000</td>
						<td>10380380</td>
					</tr>
					<tr>
						<td>France</td>
						<td>675417</td>
						<td>0.21</td>
						<td>64529000</td>
						<td>2846889</td>
					</tr>
					<tr>
						<td>Germany</td>
						<td>357021</td>
						<td>0.25</td>
						<td>81459000</td>
						<td>3859547</td>
					</tr>
					<tr>
						<td>India</td>
						<td>3287590</td>
						<td>0.68</td>
						<td>1286260000</td>
						<td>2047811</td>
					</tr>
					<tr>
						<td>Italy</td>
						<td>301230</td>
						<td>0.31</td>
						<td>60676361</td>
						<td>2147952</td>
					</tr>
					<tr>
						<td>Japan</td>
						<td>377835</td>
						<td>0.07</td>
						<td>126920000</td>
						<td>4616335</td>
					</tr>
					<tr>
						<td>Russia</td>
						<td>17098242</td>
						<td>0.26</td>
						<td>146544710</td>
						<td>1857461</td>
					</tr>
					<tr>
						<td>United States</td>
						<td>9147420</td>
						<td>0.19</td>
						<td>323097000</td>
						<td>17418925</td>
					</tr>
					<tr>
						<td>United Kingdom</td>
						<td>244820</td>
						<td>0.18</td>
						<td>65097000</td>
						<td>2945146</td>
					</tr>
				</tbody>
			</table>
		</Table>
    </div>
  );
}

4. Create basic styles (src/HelloWorld.module.scss)

.container {
  background-color: #f5f5f5;
  color: #333;
  padding: 1rem;
  border-radius: 8px;
  text-align: center;
  display: inline-block;
  min-width: 200px;
}

.message {
  margin: 0 0 1rem 0;
  font-size: 1.5rem;
}

.button {
  background-color: #4a90e2;
  color: white;
  border: none;
  padding: 0.75rem 1.5rem;
  border-radius: 4px;
  cursor: pointer;
  font-size: 1rem;
  margin-bottom: 1rem;

  &:hover {
    opacity: 0.9;
  }
}

.counter {
  font-size: 1.2rem;
  font-weight: bold;
}

5. XMLUI Metadata & Renderer (HelloWorld.tsx)

import styles from "./HelloWorld.module.scss";
import { createComponentRenderer, createMetadata } from "xmlui";
import { HelloWorld, defaultProps } from "./HelloWorldNative";

const HelloWorldMd = createMetadata({
  description: "`HelloWorld` is a demonstration component.",
  status: "experimental",
  props: {
    message: {
      description: "The message to display.",
      isRequired: false,
      type: "string",
      defaultValue: defaultProps.message,
    },
  },
});

export const helloWorldComponentRenderer = createComponentRenderer(
  "HelloWorld",
  HelloWorldMd,
  ({ node, extractValue }) => {
    return (
      <HelloWorld
        id={extractValue.asOptionalString(node.props?.id)}
        message={extractValue.asOptionalString(node.props?.message)}
      />
    );
  }
);

The renderer is the glue that translates XMLUI markup into React, making sure all props are correctly extracted and defaults are applied when needed.

6. Create the extension index (src/index.tsx )

import { helloWorldComponentRenderer } from "./HelloWorld";

export default {
  namespace: "XMLUIExtensions",
  components: [helloWorldComponentRenderer],
};

7. Build the extension

npm run build:extension

This creates xmlui-hello-world.js in the dist folder.

8. Test the application

Create the test-app/Main.xmlui file with your component's markup

<App>
  <VStack gap="2rem" padding="2rem">
    <Heading>HelloWorld Component Test</Heading>
    <HelloWorld message="Hello from standalone app!" />
  </VStack>
</App>

Then create the index.html file

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
  <title>HelloWorld Extension Test</title>
  <script src="https://unpkg.com/xmlui@latest/dist/standalone/xmlui-standalone.umd.js"></script>
  <script src="../dist/xmlui-hello-world.js"></script>
</head>
<body theme="dark">
</body>
</html>

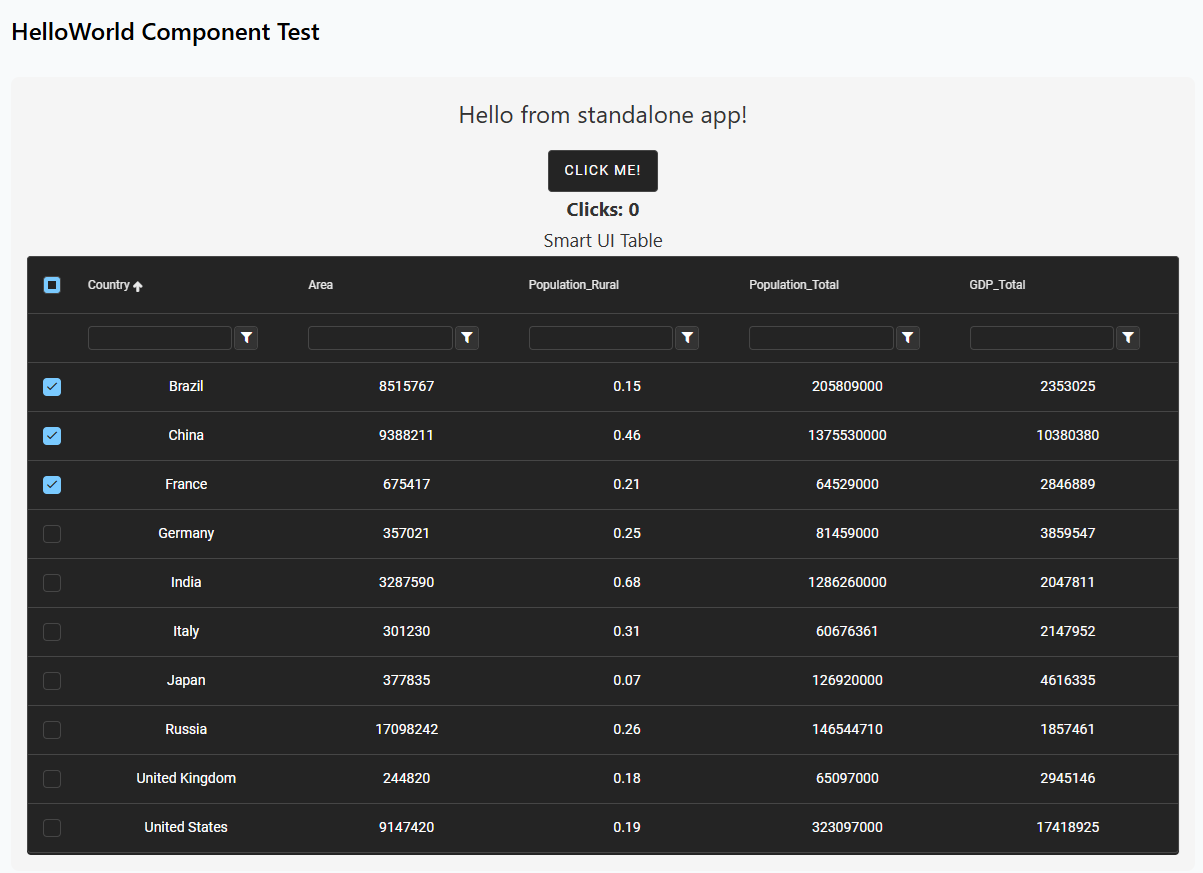

9. Run the app

npx -y http-server -p 3000 -c-1 -o

Tip: This same wrapping pattern works for advanced Smart UI components like Grids, Charts, and Schedulers.

Summary

XMLUI separates metadata from React logic
Smart UI components can be wrapped and exposed to XMLUI
You can freely mix custom and third-party UI components

You now have a clean foundation for building structured XML-driven UIs powered by React and Smart UI.

Download the test app xmlui-demo.zip
